GRT-CROSS

3-phases Cutting Units

TEXTILE
LEATHER
TECHNICAL
COMPOSITE
SPORT

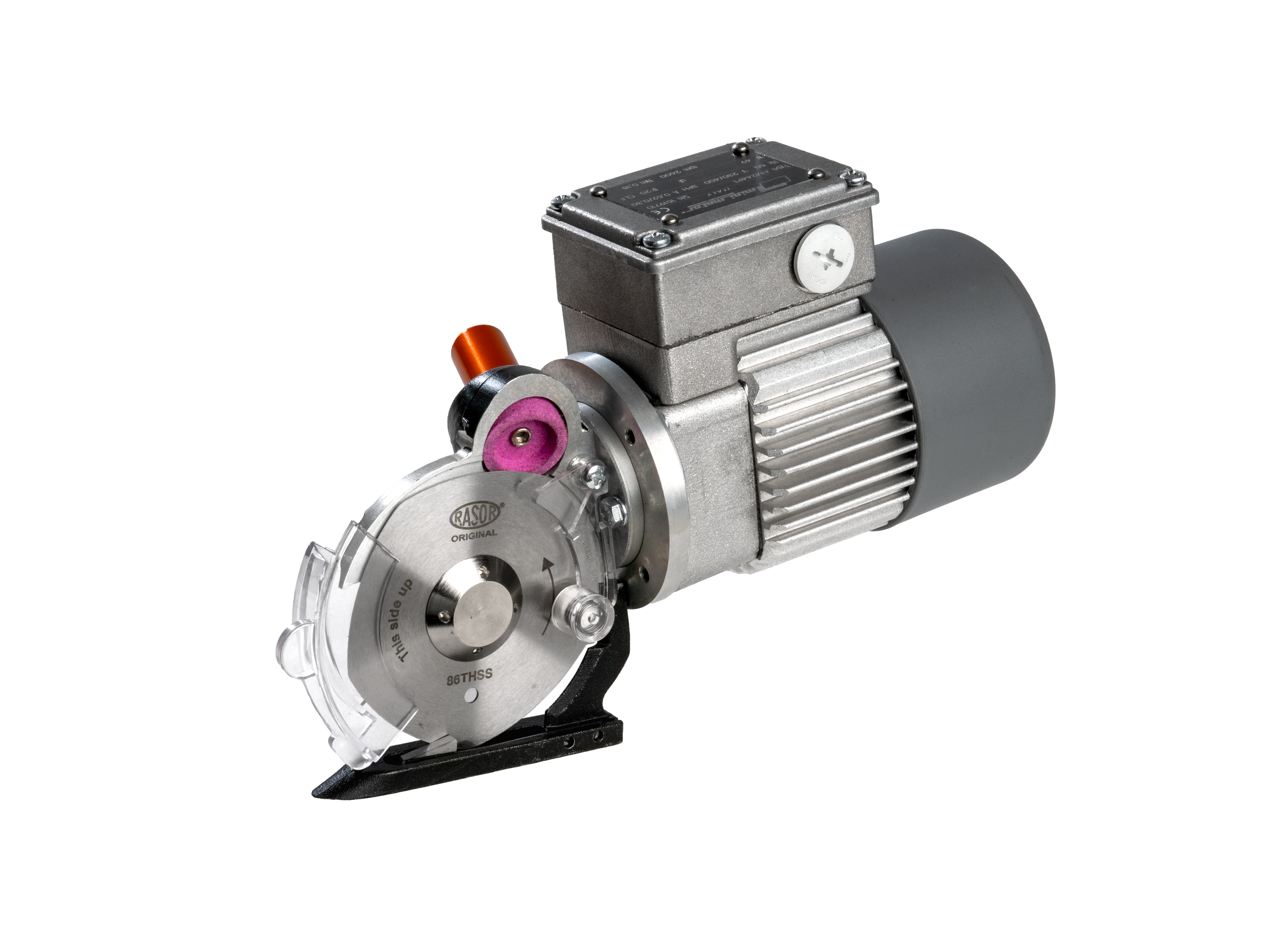

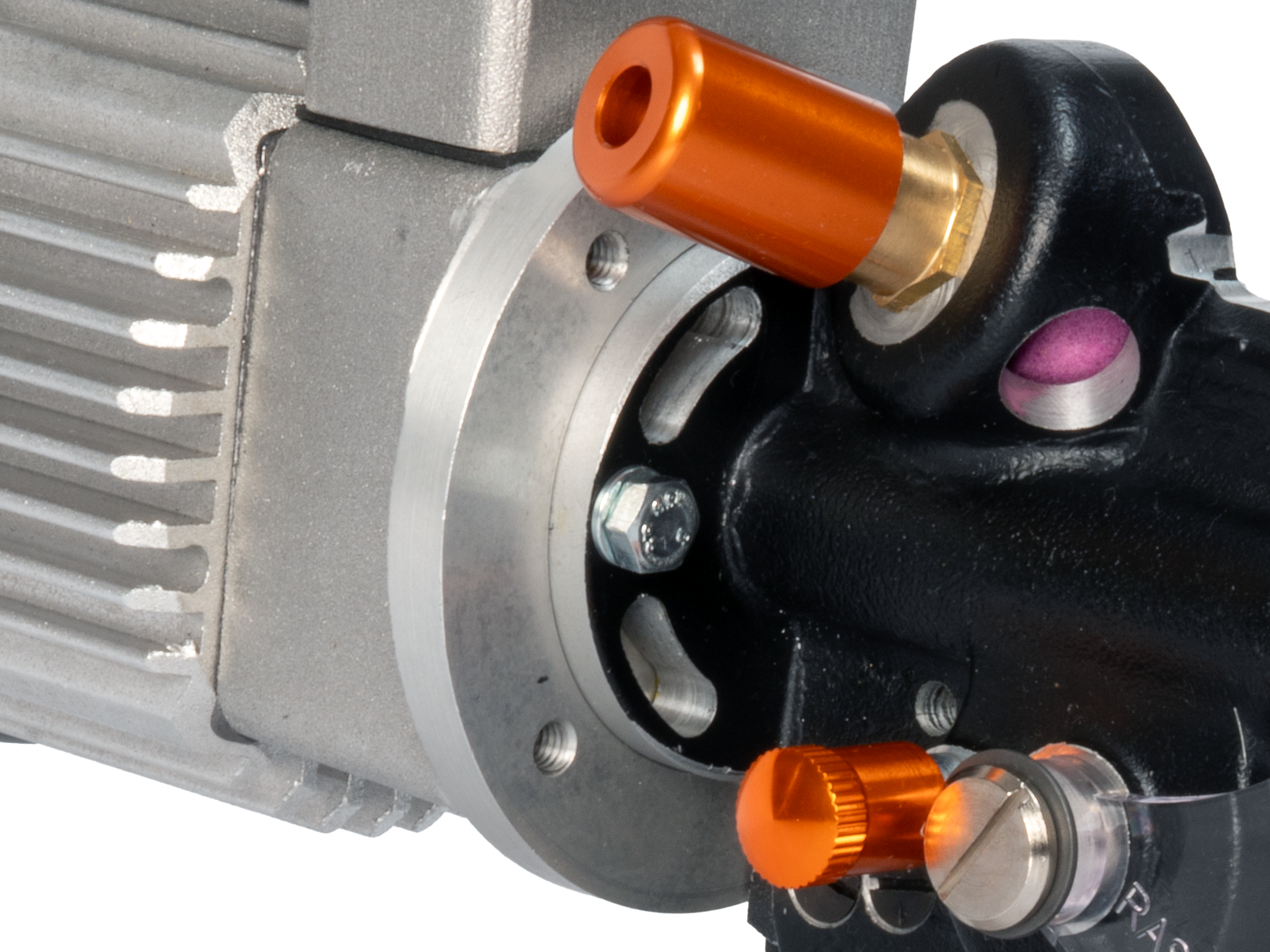

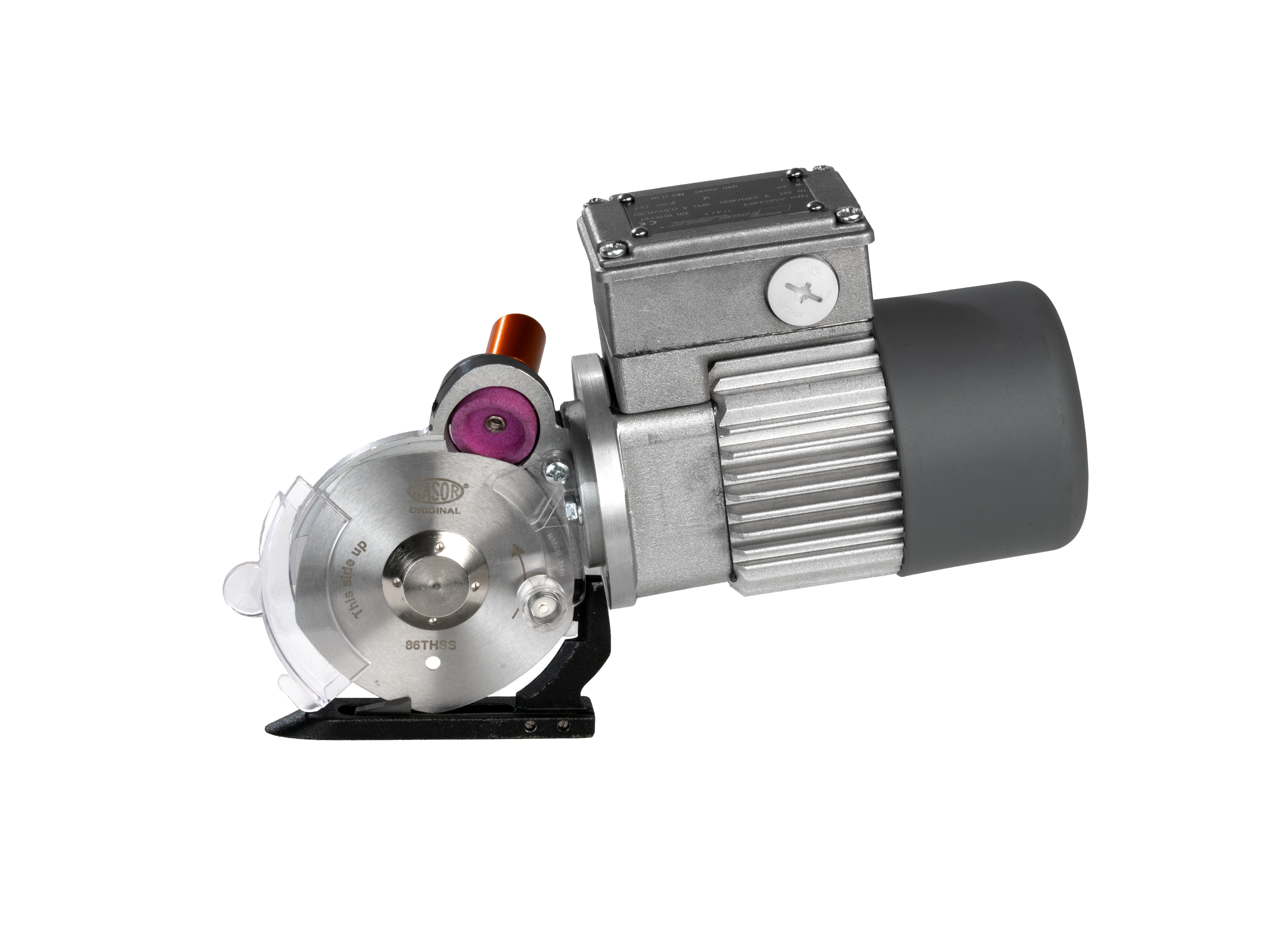

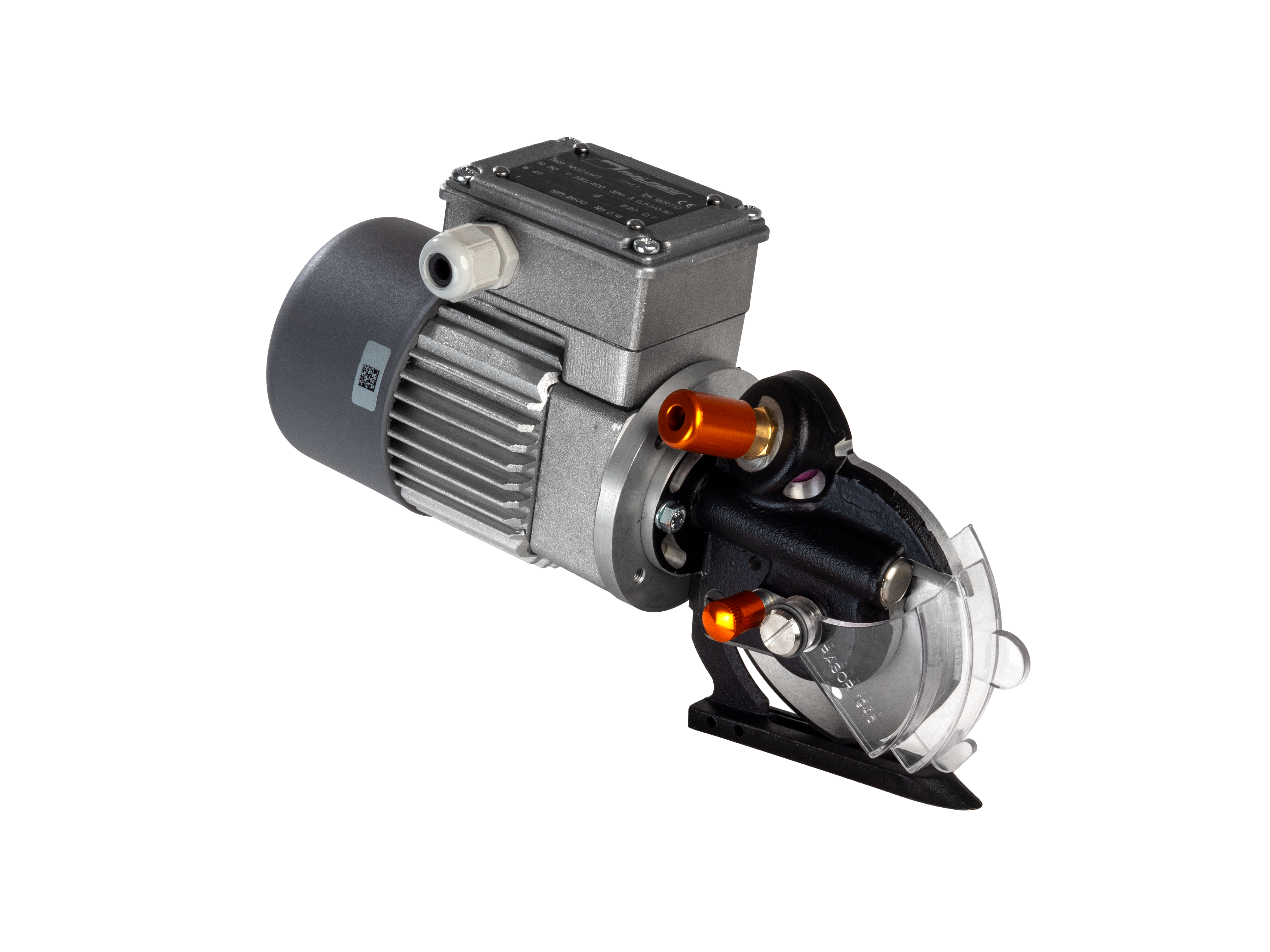

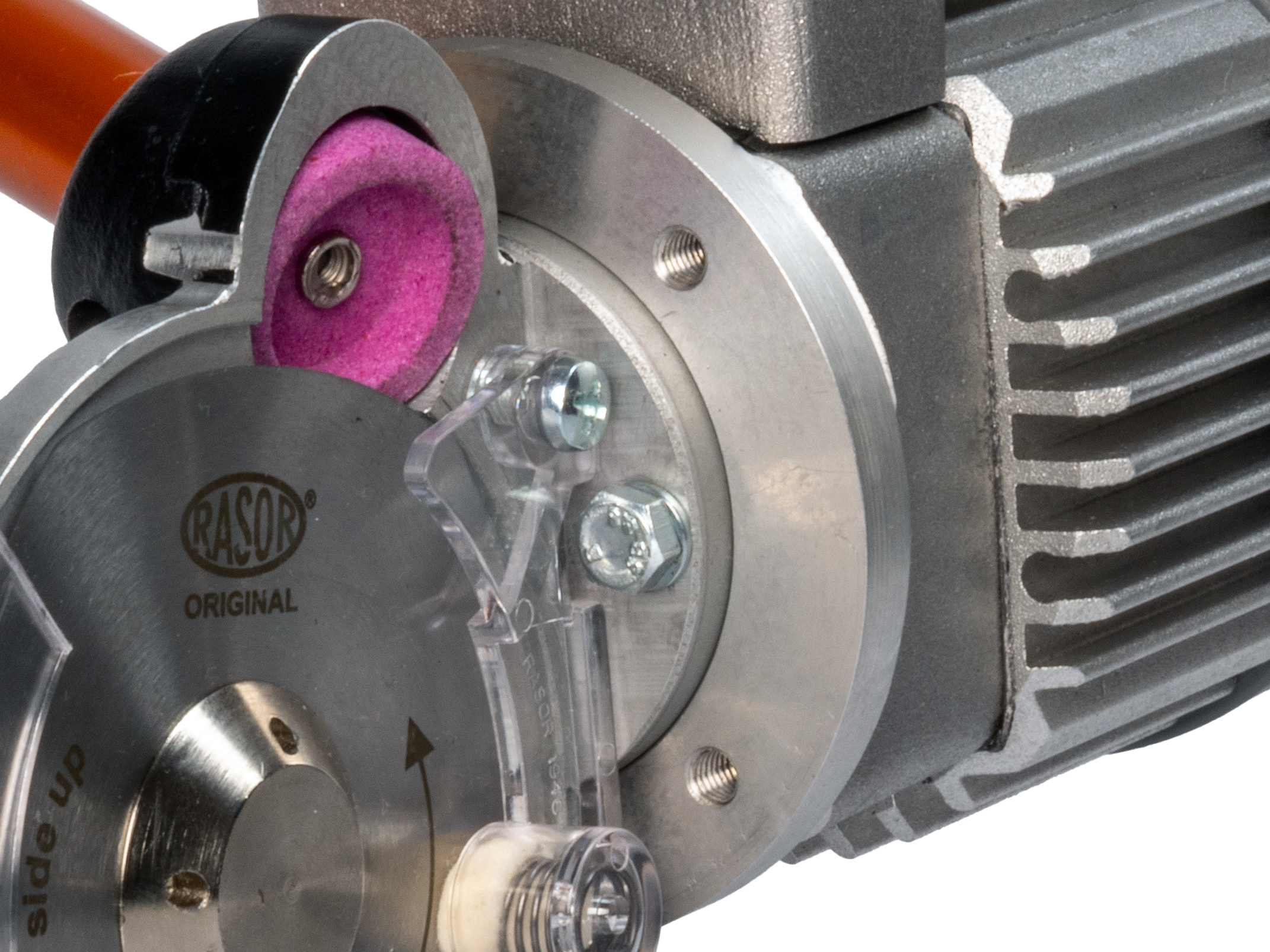

This powerful 3phase horizontal O.E.M. unit, developed and produced by Rasor®, is designed to cut a wide range of textiles and flexible elastomers up to 25 millimeters thick. The new GRT-CROSS provides exeptional power offers and is remarkably easy to use. The new gears reach up to 550rpm and cutting is smooth and flawless. The GRT-CROSS is designed with safety and ease of use in mind. The industrial 3 phases motor, in combination with extra strong steel brass gears, guarantee low maintenance and exceptional durability. The special flange allows to install the unit in different ways. The design allows installation in confined spaces, and it can be used for cross, stripe and endless cutting. Featuring a finger protection and a semi-automatic sharpening system, blade reconditioning is done in less than 10 seconds, without the need for blade disassembly. The motor housing is held by a central foot fitted behind the blade in central position. This system allows the pressure to spread and guide the machine through the fabrics on both sides of the blade. The knife is half-free on both sides to avoid winding problems even with tough fibers. It can cuts a wide range of materials, including classic fabrics, the latest hybrid weavings and many other materials. The GRT-CROSS will be the ideal choice for a wide range of your cutting applications. 3D files are available on request.

For safety reasons the use of RASOR® safety gloves is mandatory.

Experience the future of cutting technology with RASOR®.

GALLERY

VIDEO

SPECIFICATIONS

Blade diameter86 mm (3.4″), with hard metal counterblade
Blade descr.86THSS, 8-edges, HSS steel
Blade speed550 r.p.m.
Cutting ability25 mm (1″)
Motor3-phases asynchronous 380/400* V, 50Hz
Power55W
Consumption0.3 A
ProtectionIP20 – CL F
Net weight (with power supply cord)2400 g
Total weight (with packaging)3200 g
Electric cable length1 mt (with no plug)
Minimum brightness for working operations200 LUX
Vibrations at start up< 2.5 m/sec 2
Temperature range0 – 55 C
Umidity range10 – 95% without condensate * This model can be set up at 3-phase 220V
