GRT-MINIVM

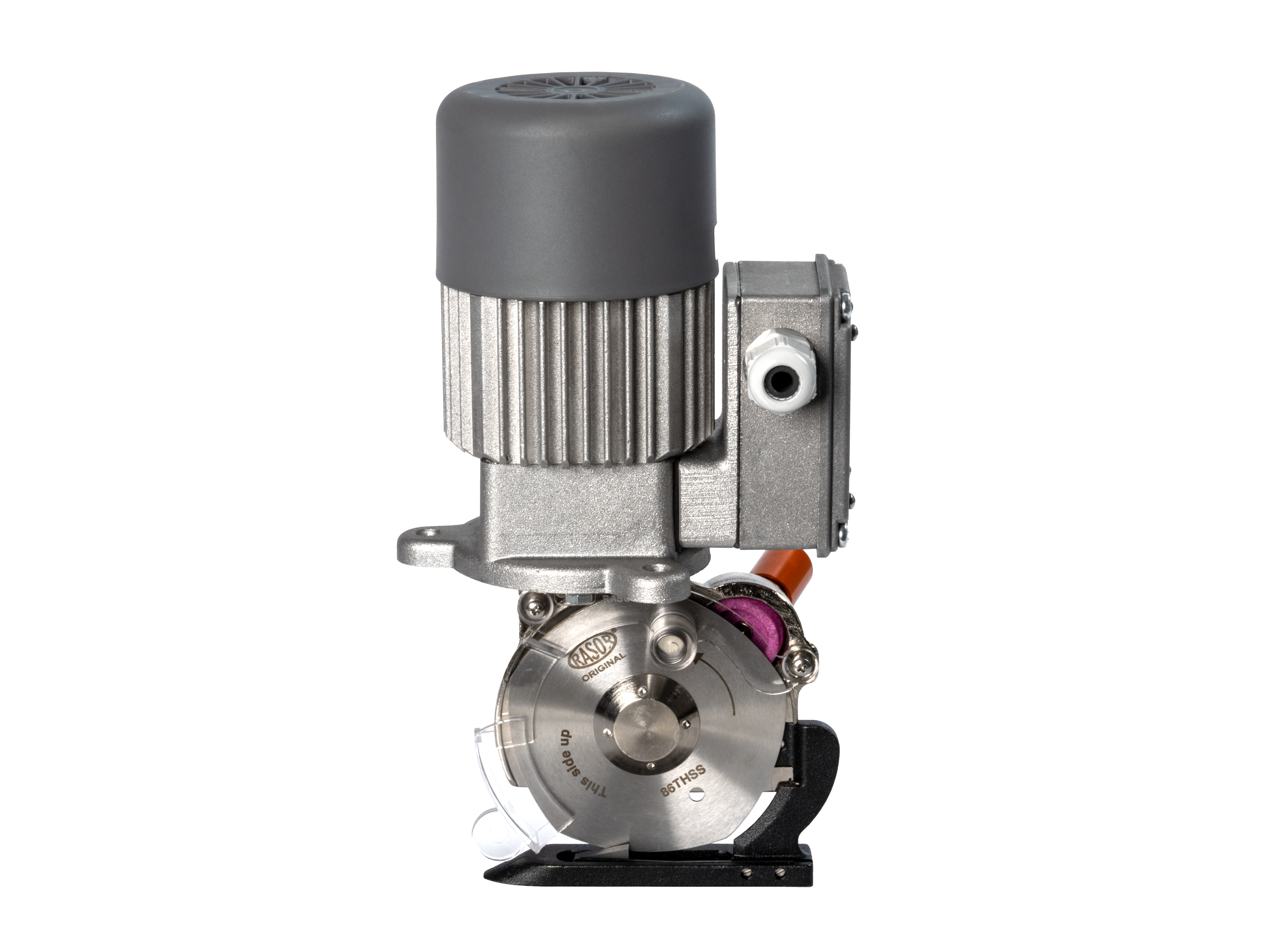

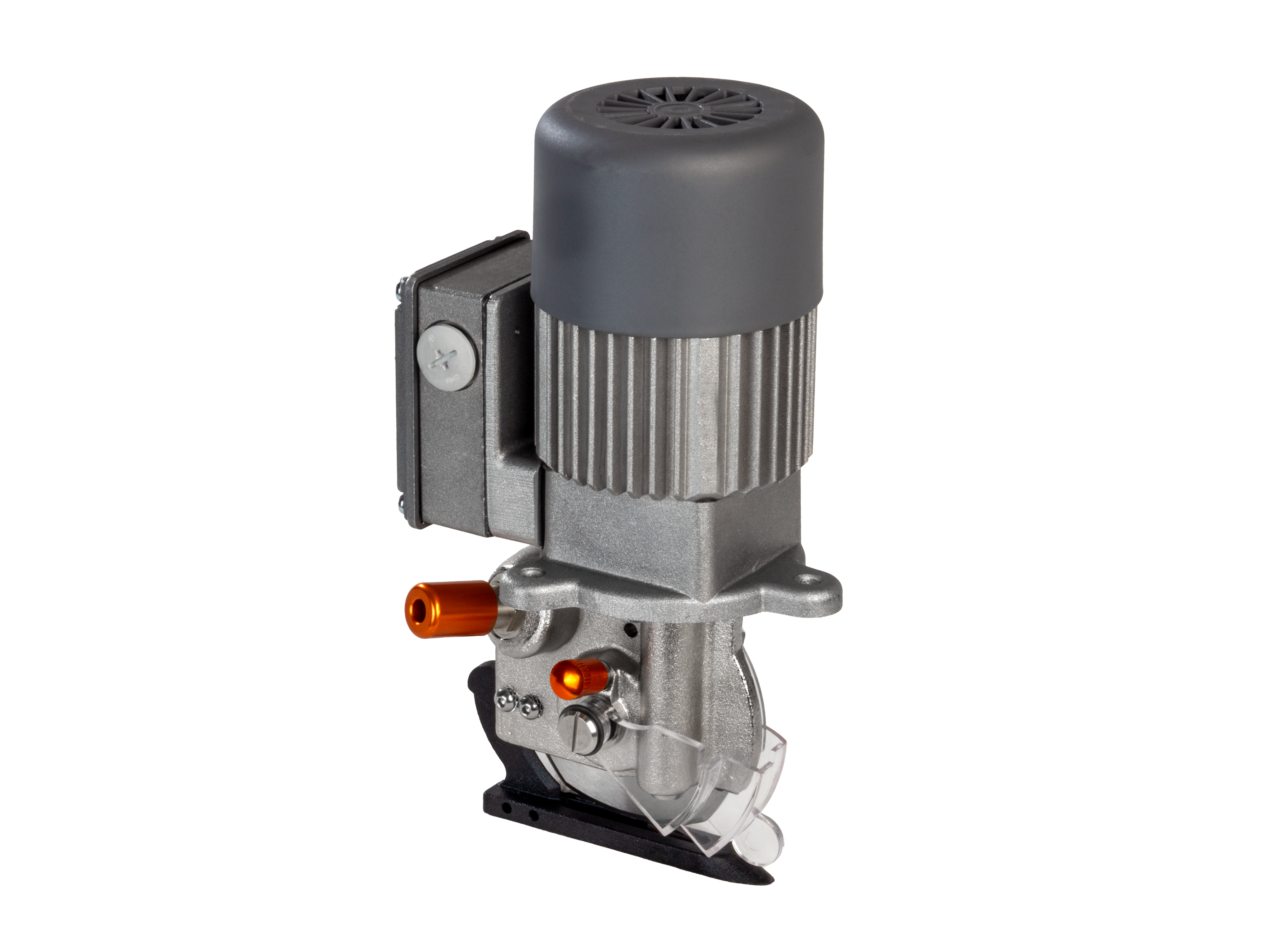

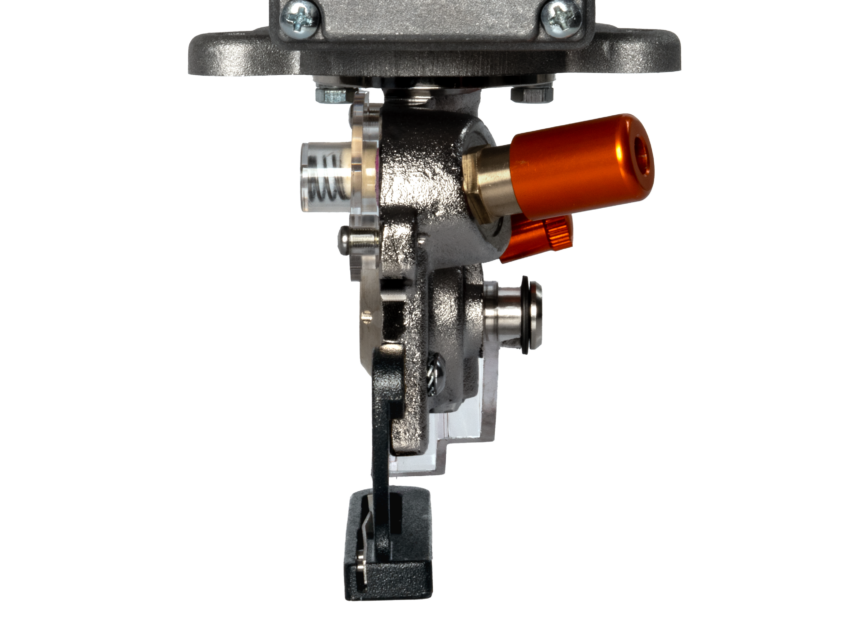

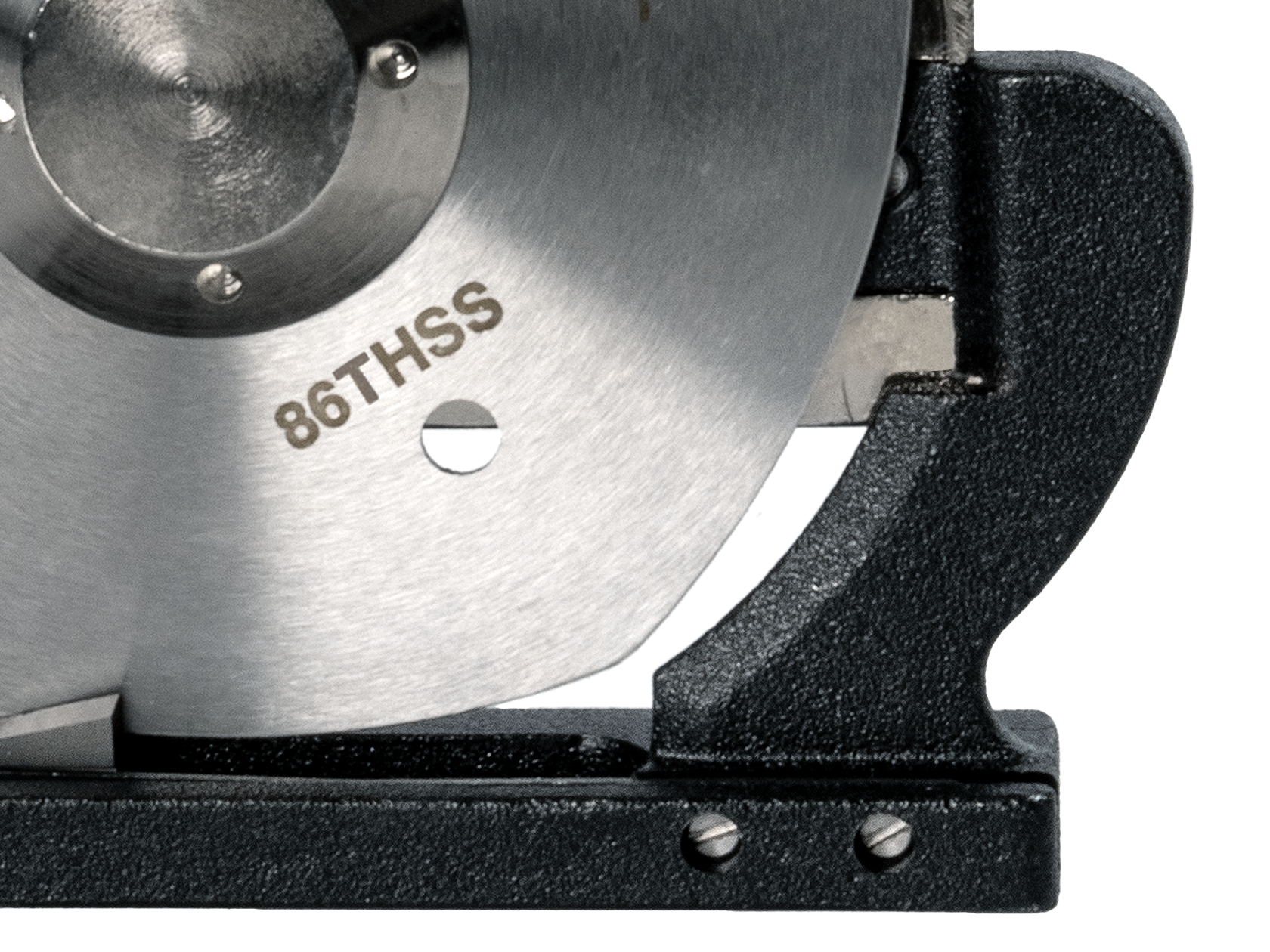

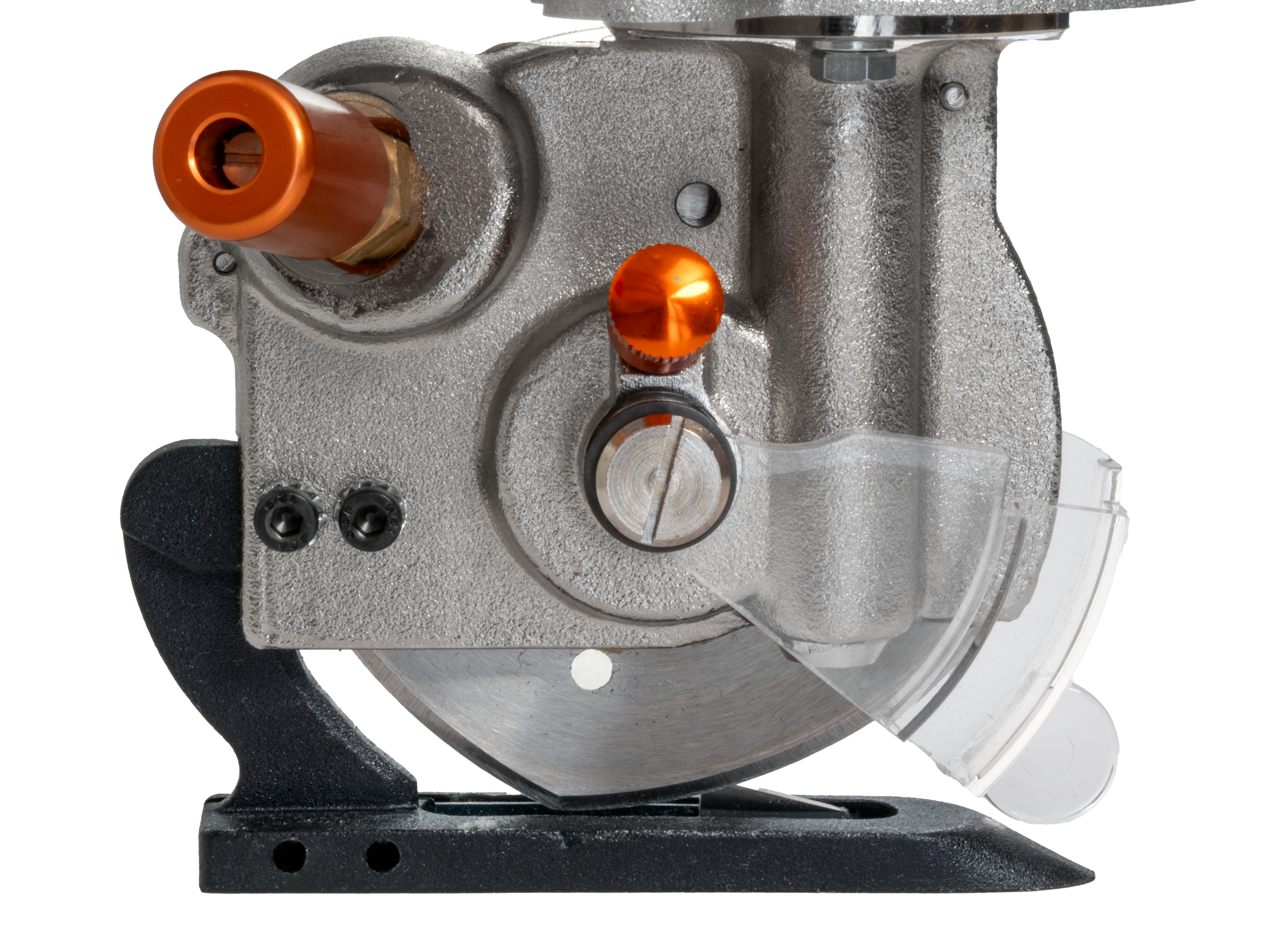

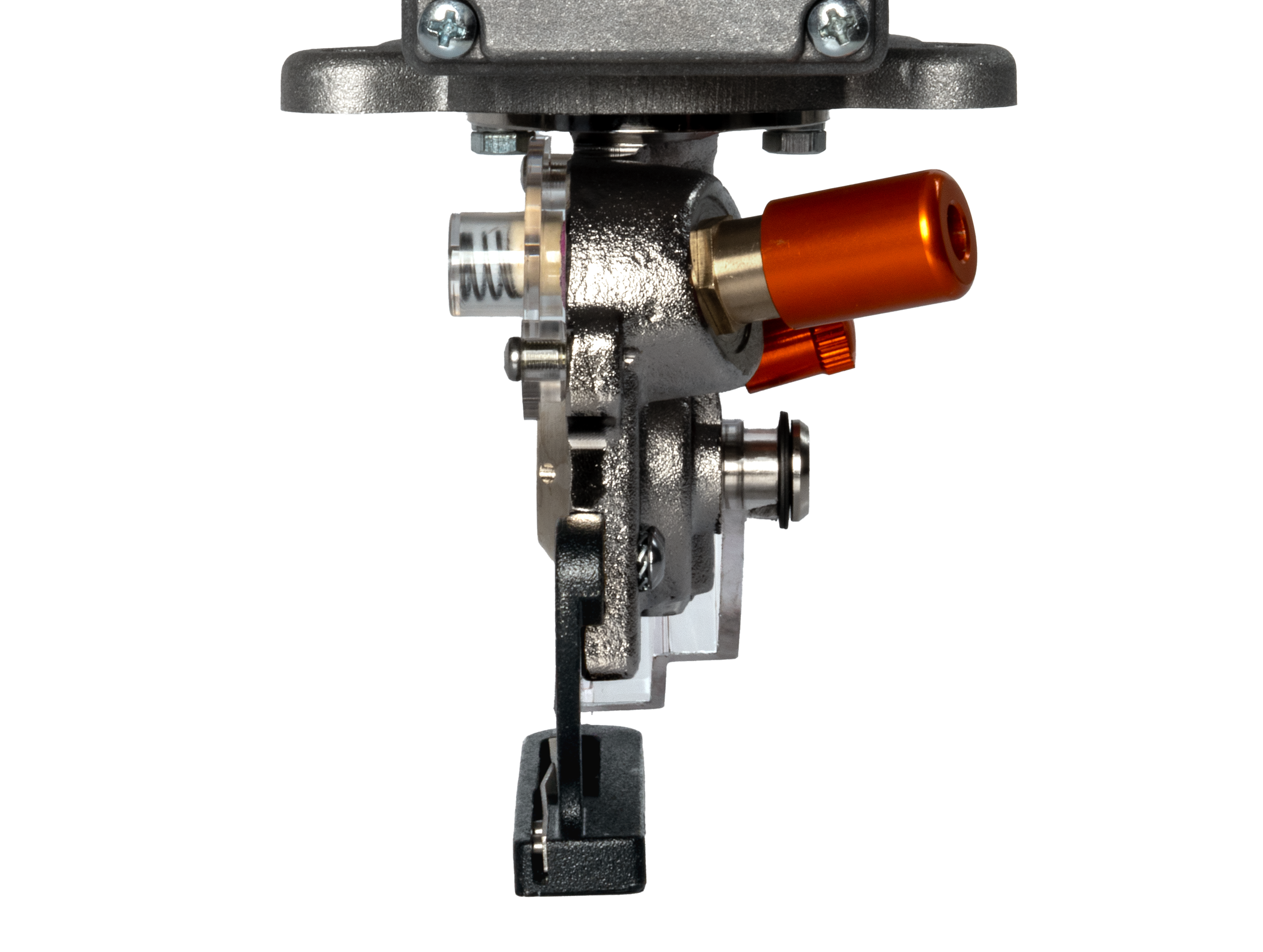

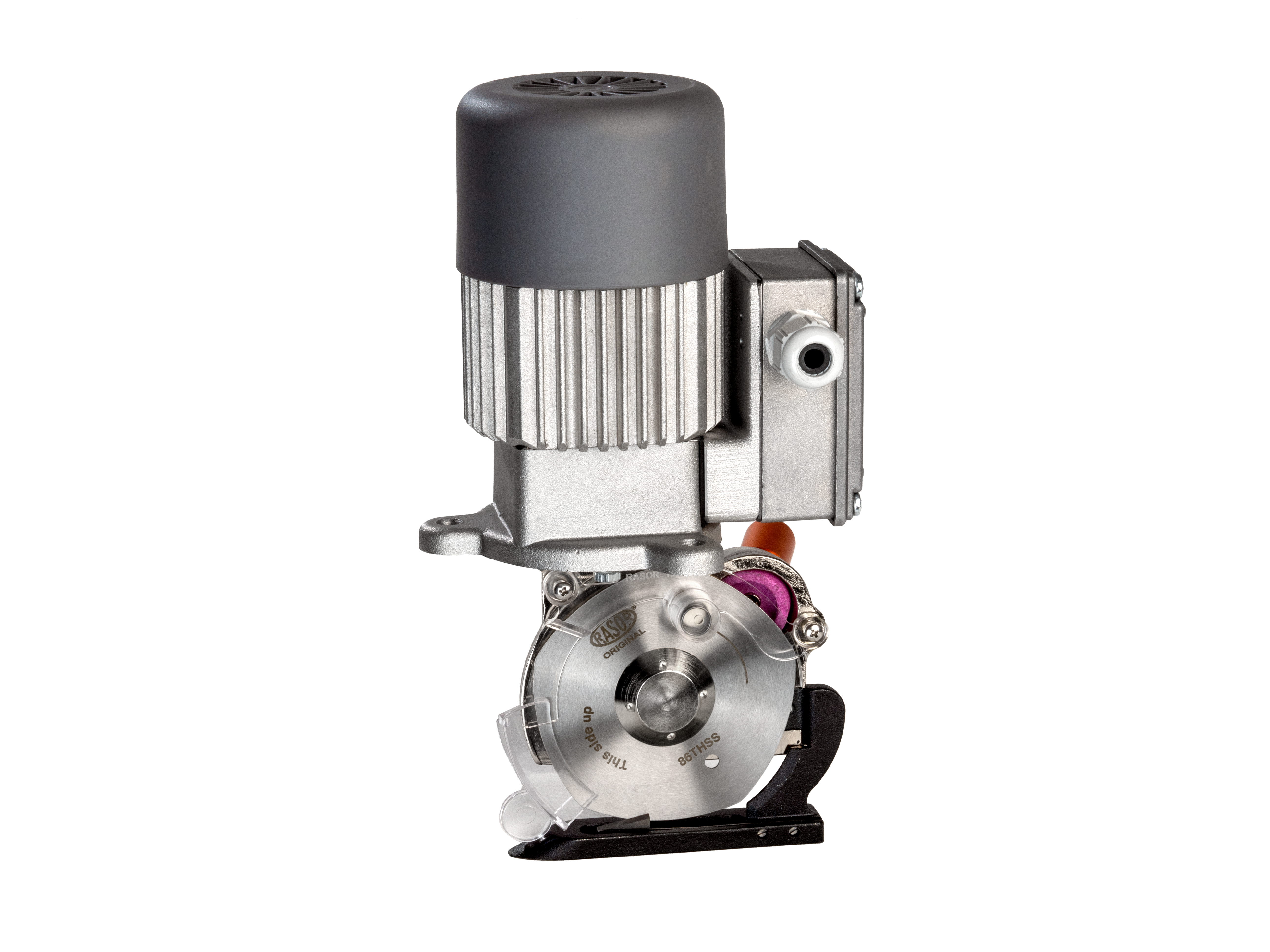

Designed to cut a wide range of textiles and flexible elastomers up to 25 millimeters thick, the new GRT-MINIVM offers incomparable power and is exceptionally user-friendly. The GRT-MINIVM is designed with safety and easy of use in mind. The upright design allows installation in confined spaces, and it can be used for cross, endless and stripe cutting. It will be the ideal choice for a wide range of your cutting applications. The motor housing is held by a central foot fitted behind the blade in central position. This system allows the pressure to spread and guide the machine through the fabrics on both sides of the blade. Featuring a finger protection and a semi-automatic sharpening system for blade reconditioning in less than 10 seconds without the need for blade disassembly. The special flange allows to install the unit in different ways. The knife is half-free on both sides to avoid winding problems even with tough fibers. The GRT-MINIVM industrial 3 phases motor, in combination with extra strong steel brass gears, guaranty low maintenance and exceptional durability. The new gears reach up to 550rpm and make cutting flawless and smooth. The GRT-MINIVM can cut a wide range of materials, including classic fabrics, the latest hybrid weavings and many others. 3D files are available on request.

For safety reasons the use of a steal protection glove is mandatory.

• Heigh-adjustable trasparent fore blade protection
• Fixed trasparent back blade protection
• CLF – IP65 electric insulation
