RS1
Battery Driven Scissors
TEXTILE
LEATHER
TECHNICAL
COMPOSITE
SPORT

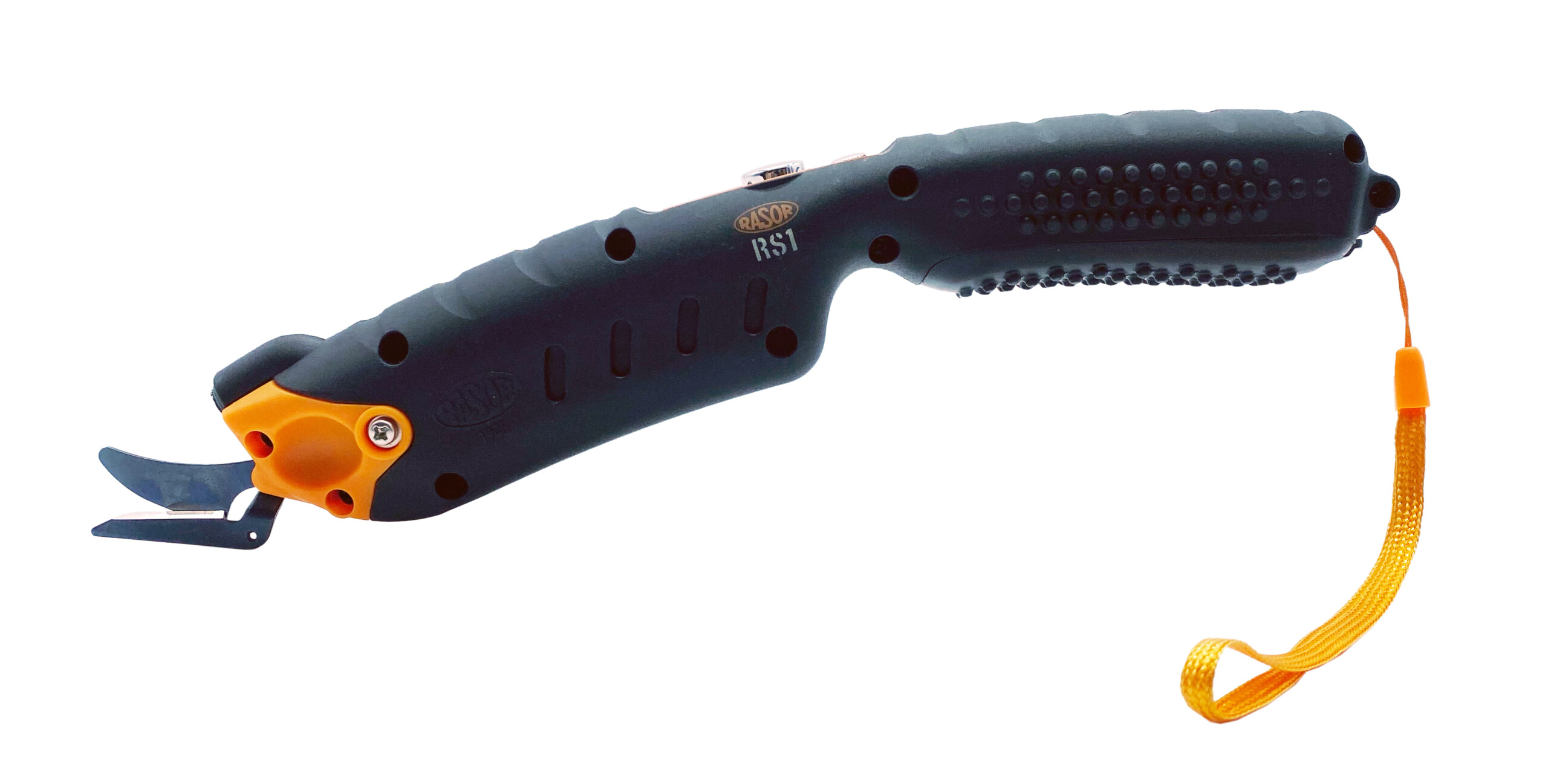

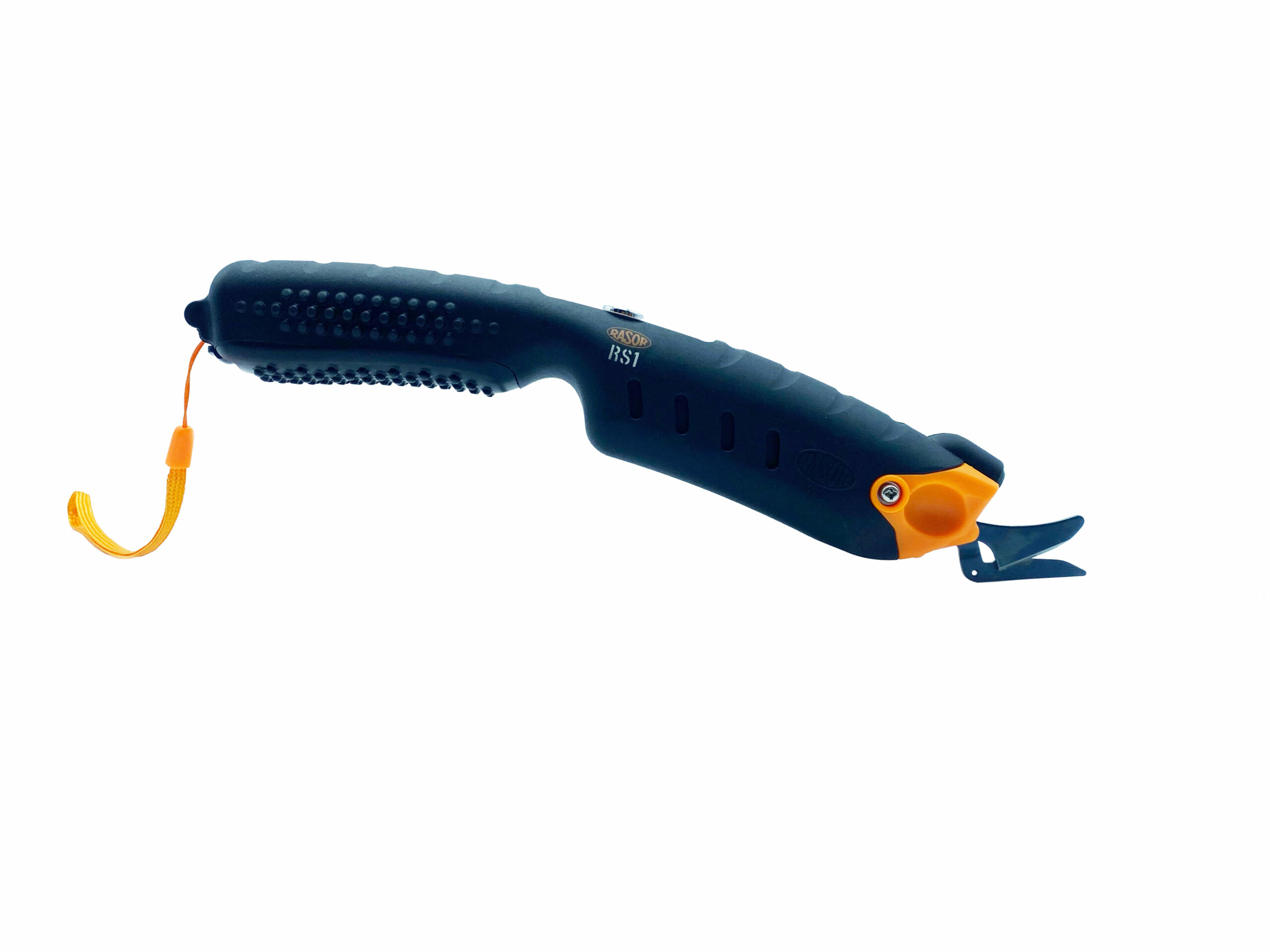

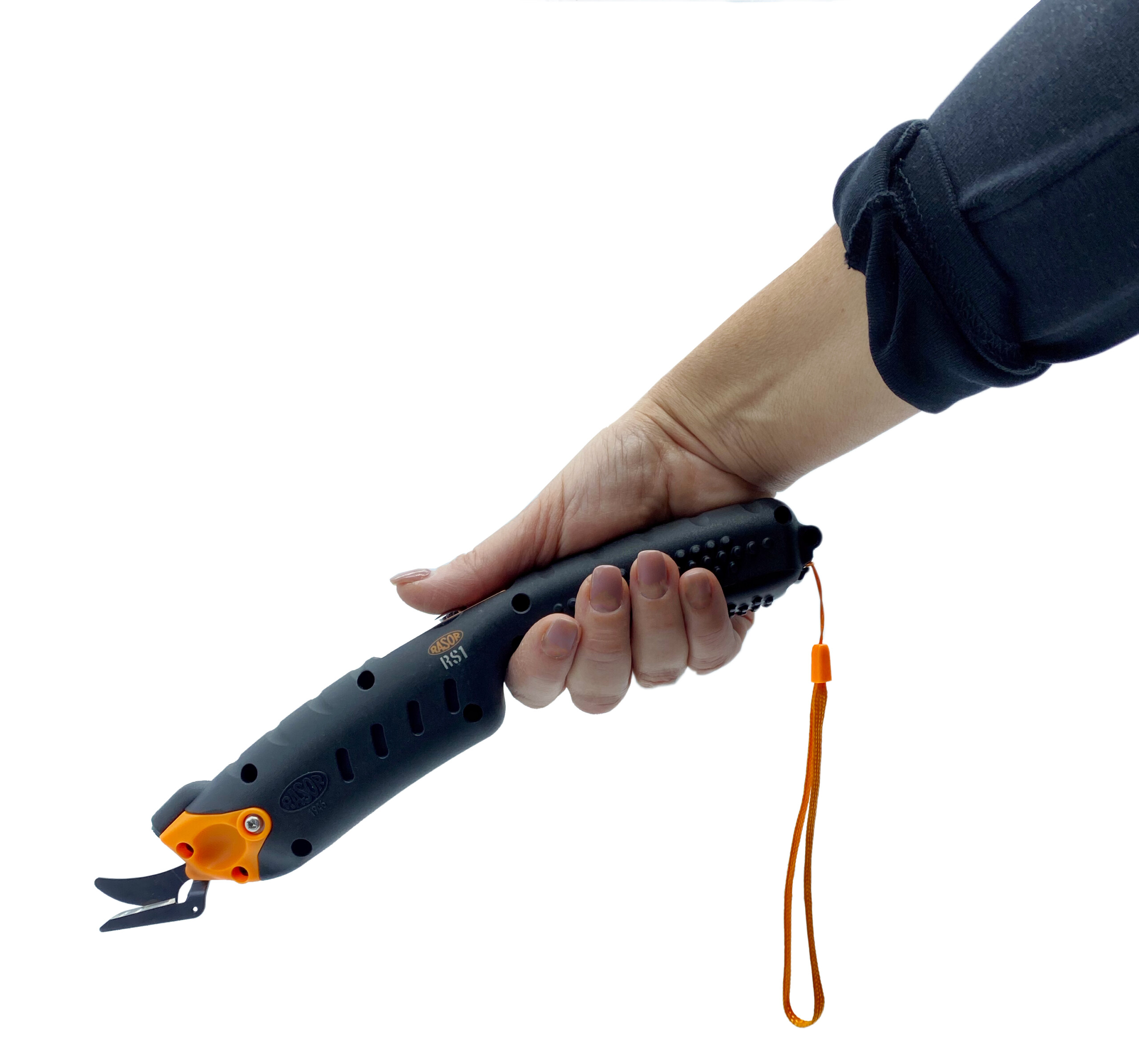

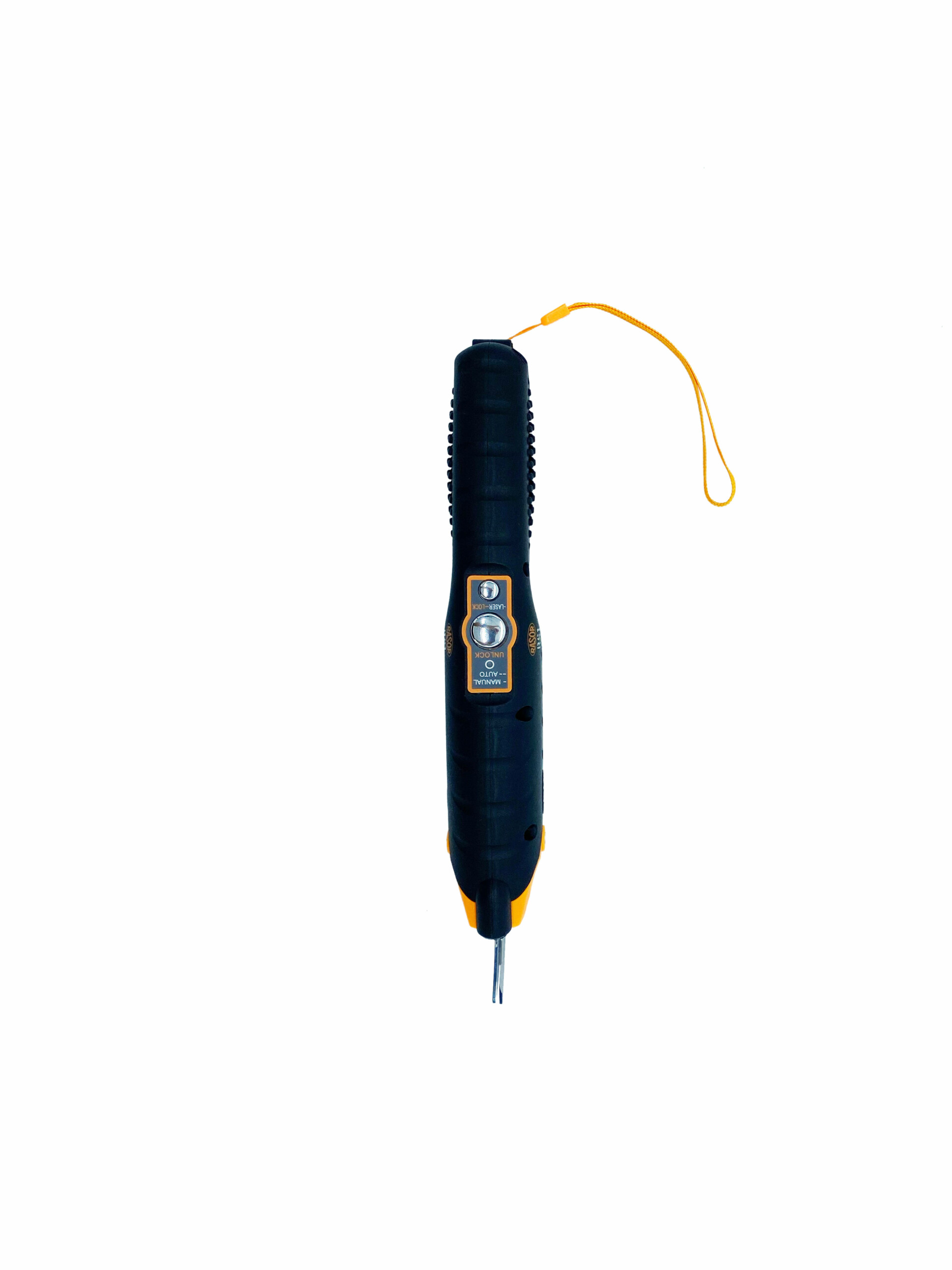

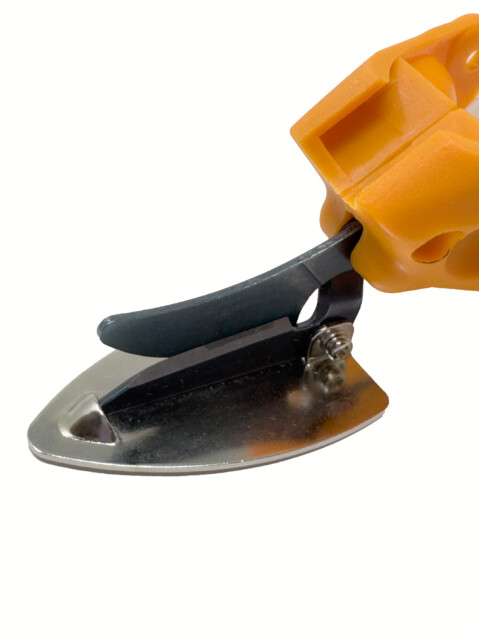

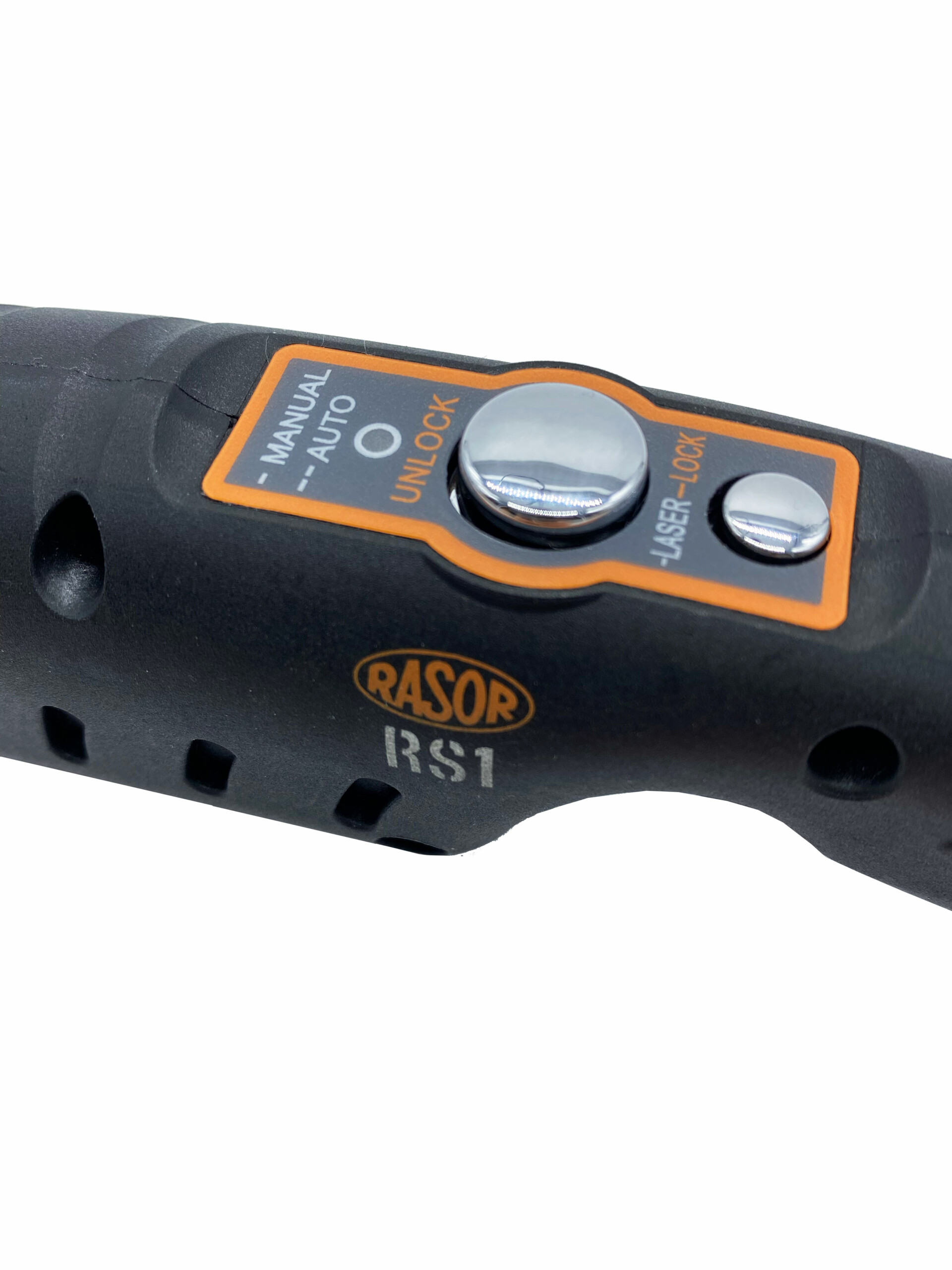

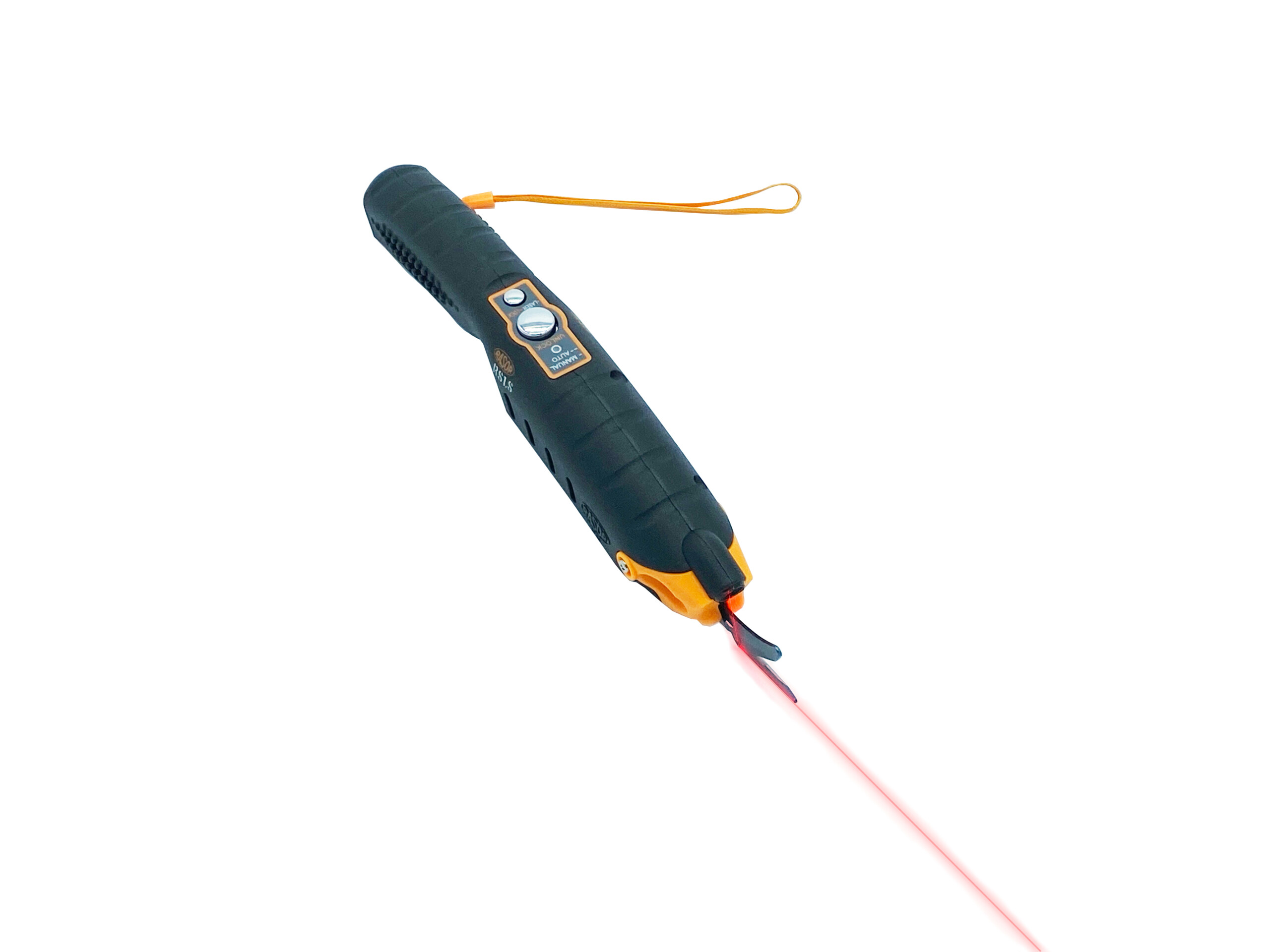

The new RASOR® RS1 is a professional battery driven scissor with alternating blades. It is ergonomic, strong and has excellent cutting performance. The RS1 has blades with Tungsten steel inlays (Widia®) which assure perfect cut without jam and clean edges of the material. The Li-Ion® technology batteries ensure a long-term use and are powerful with 3.6V and 5Ah. The speed of the motor (19.000 rpm) allows to move the blades at 80 times per second. The smart button technology with Safety-Lock and automatic cutting mode makes the RS1 an unique scissor on the market. The integrated laser light-line allow to follow a line for a straight cut. The Rasor RS1 guarantees long and effortless use thanks to its light weight of only 370 grams, including the battery. Any kind of natural and technical textiles can be cut with the RS1. Also, light plastics, and polymers. Skai, upholstery leather and paper products are also possible. Thanks to its ergonomic and convenient design, it cuts both straight and contour with an excellent view of the material.
VIDEO
SPECIFICATIONS

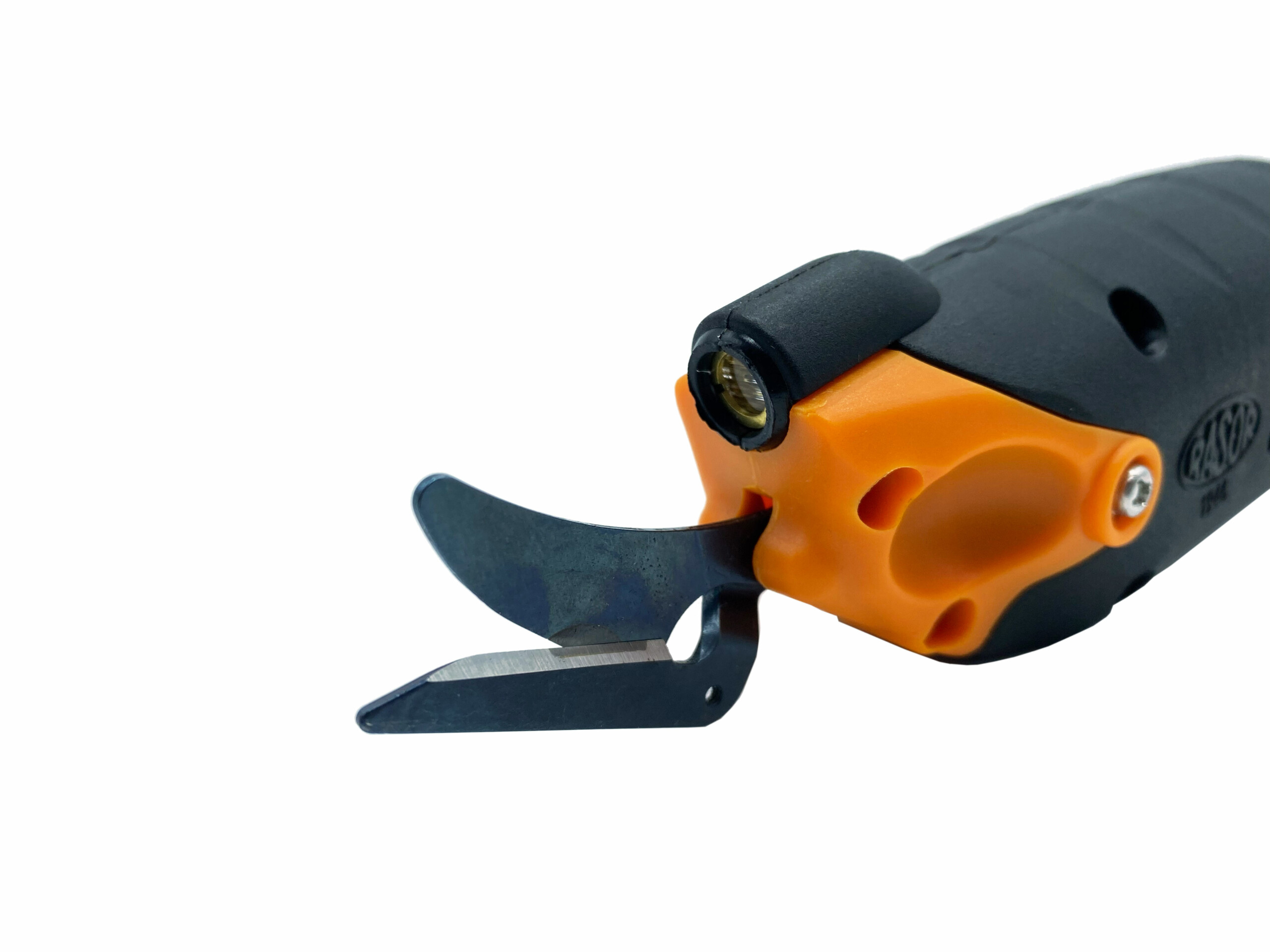

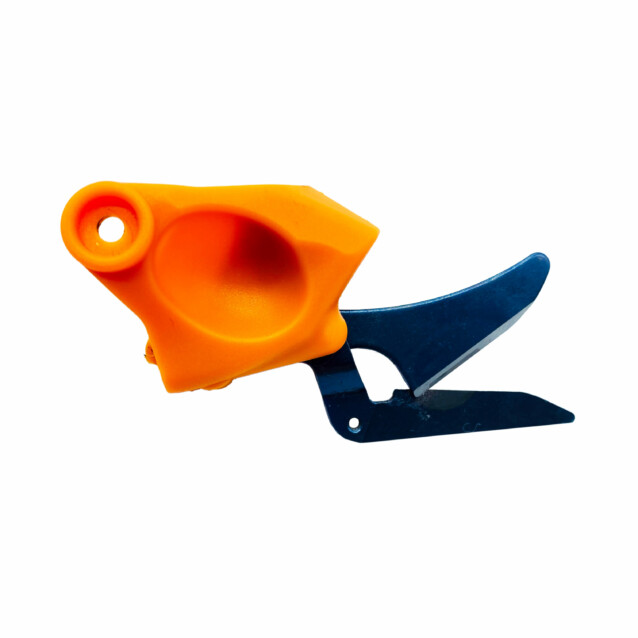

Blade type | alternating, steel with Tungsten inlay (Widia®) |
Motor speed | 19.000 rpm |
Blades speed | 80 rpm |
Cutting ability | 18 mm |
Power | 32 W |

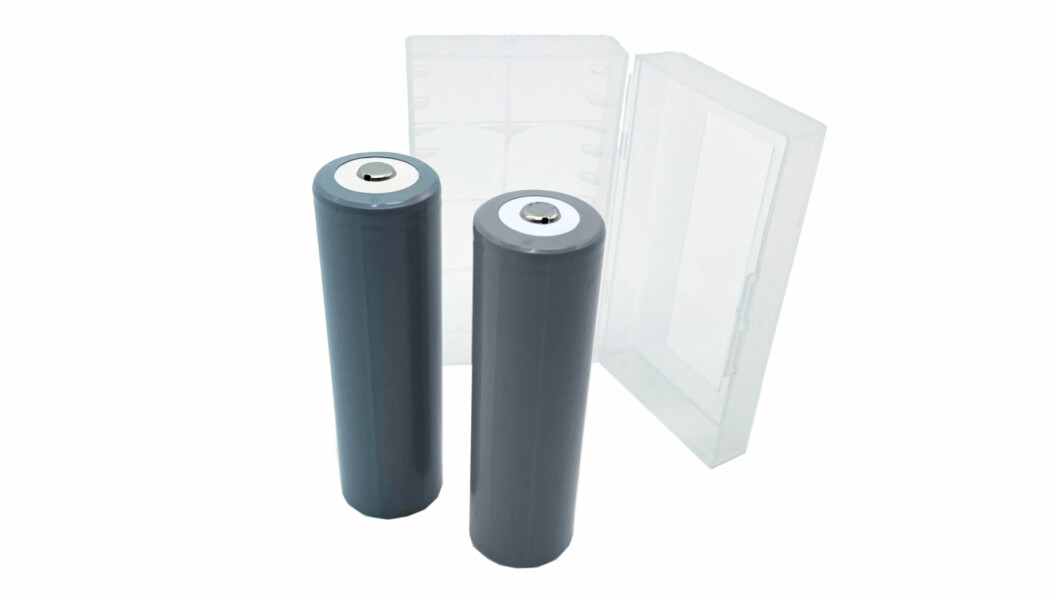

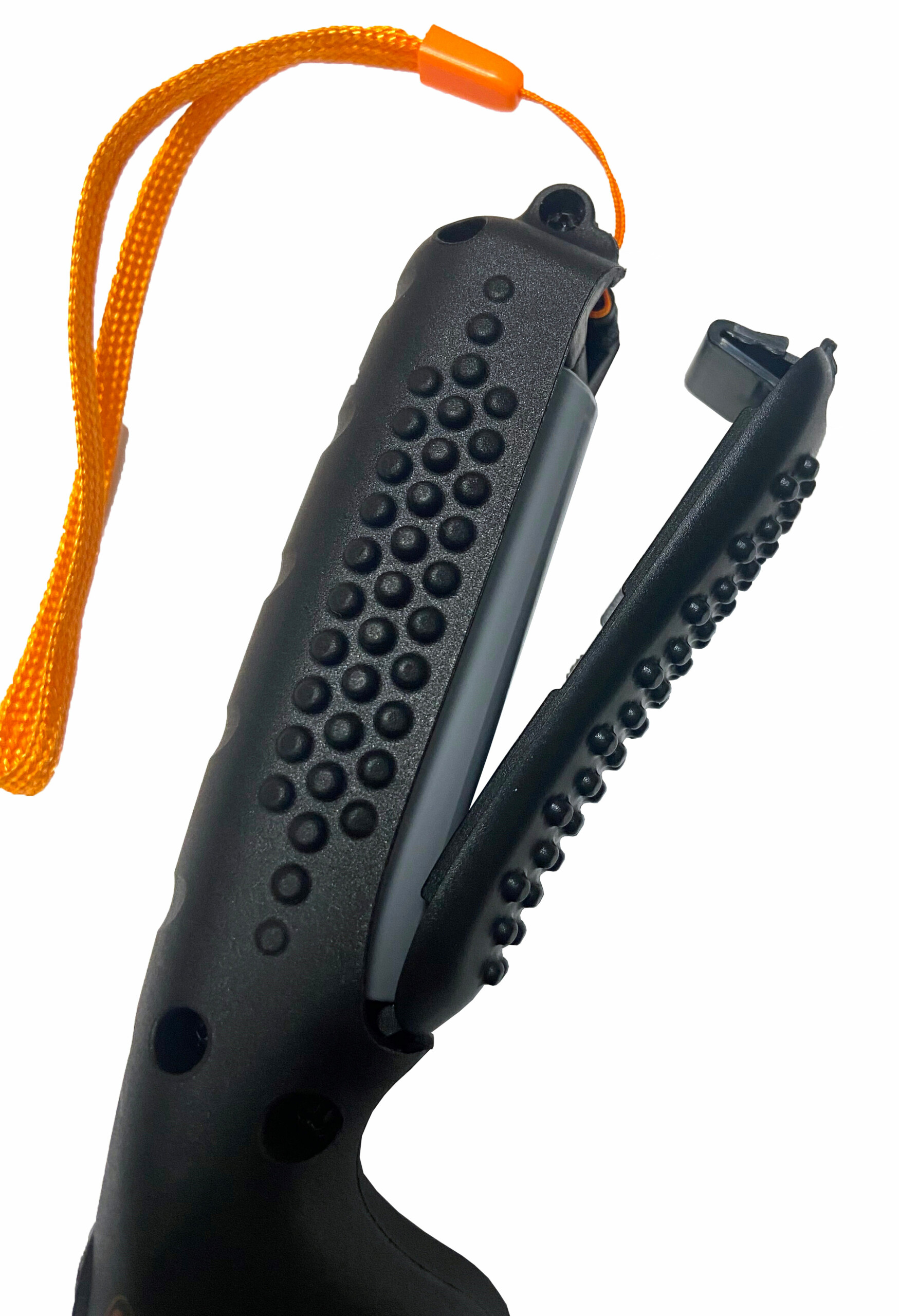

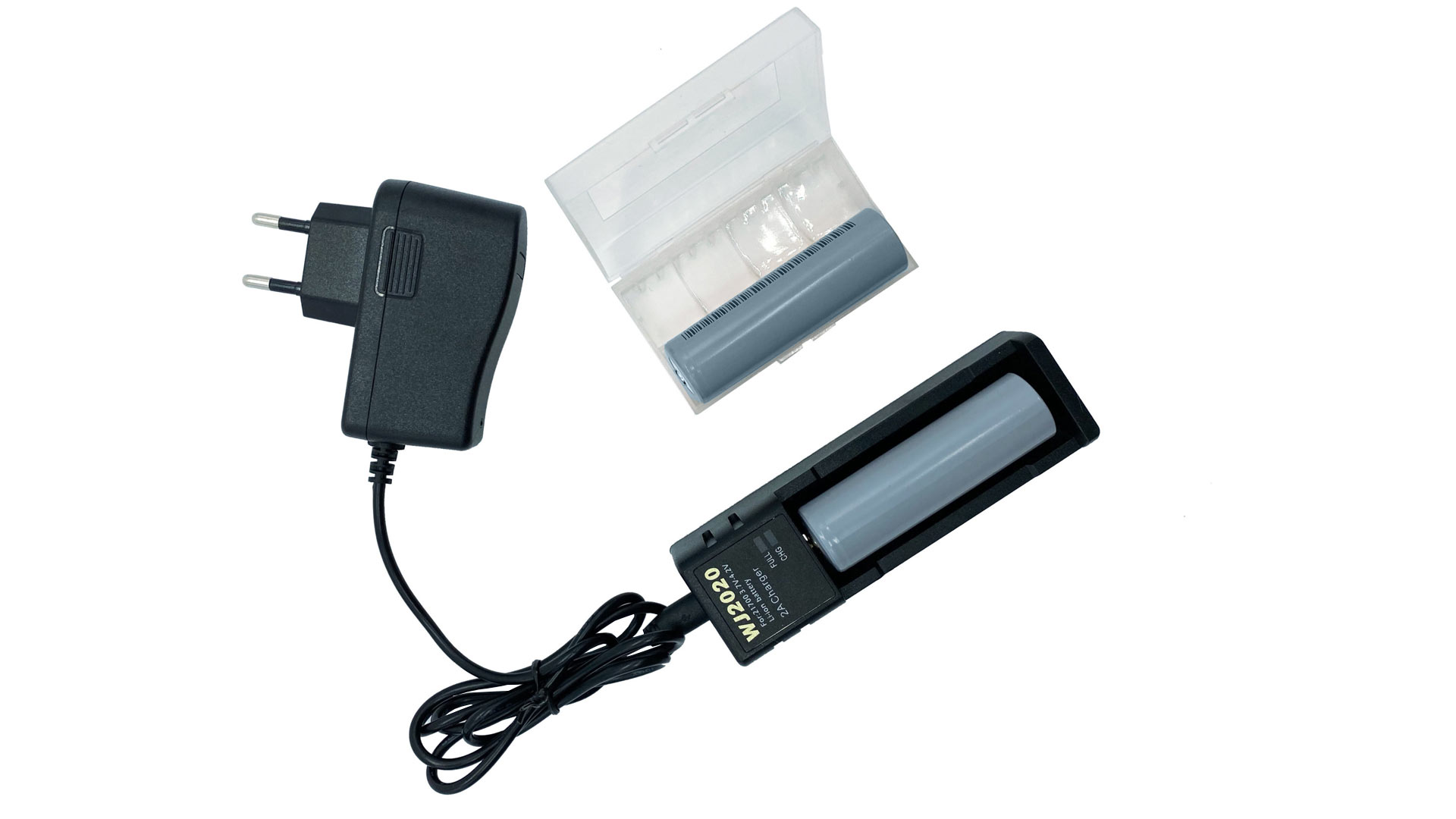

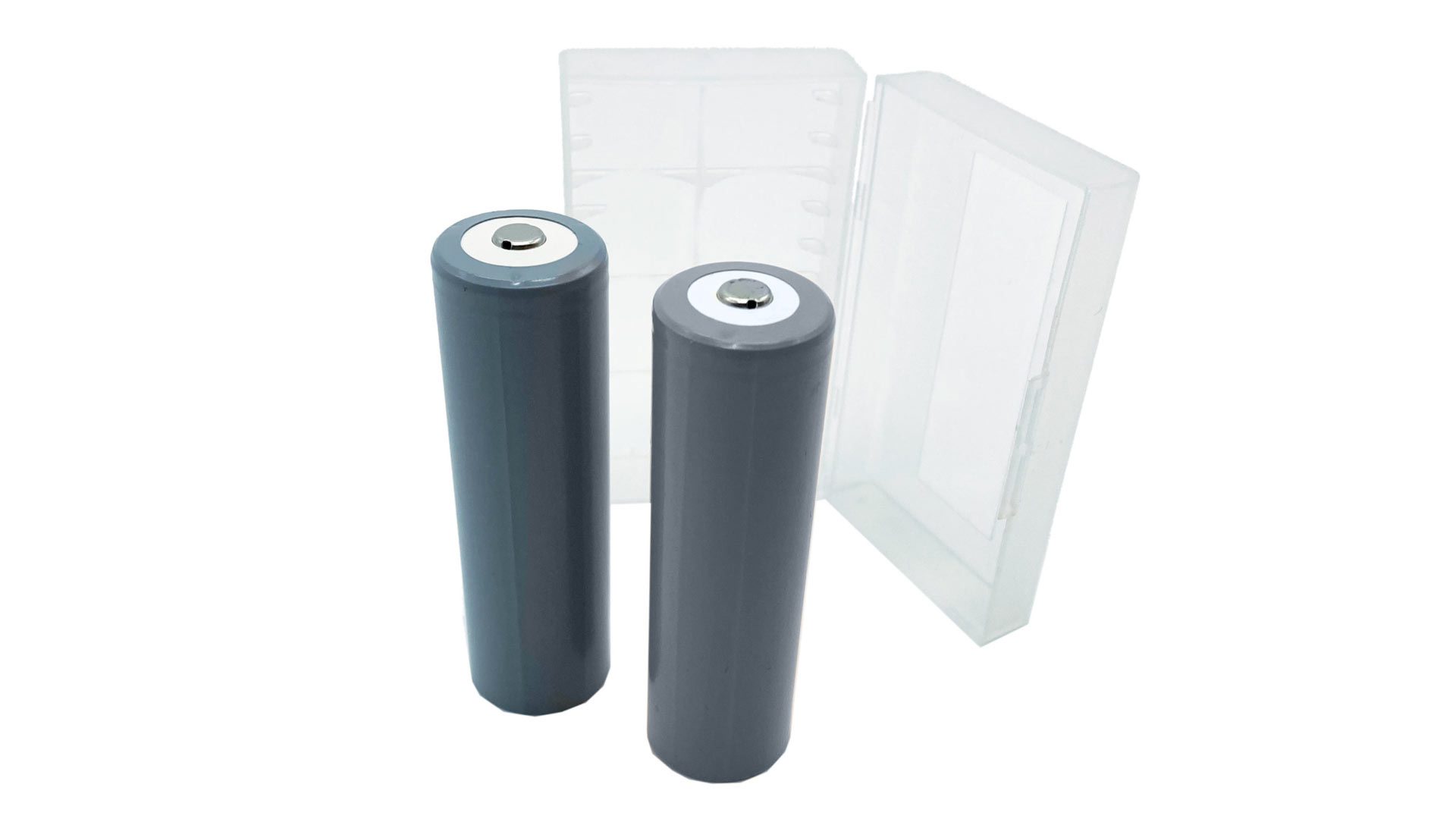

Battery | 2.8-4.2 V, Li-Ion®, 5 Ah rechargeable with LED indicator |

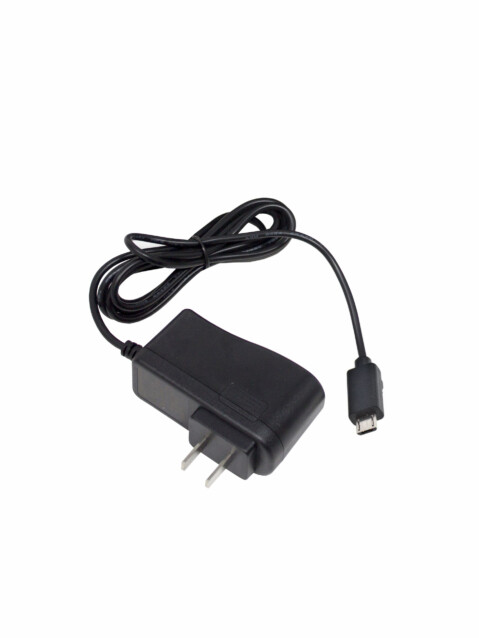

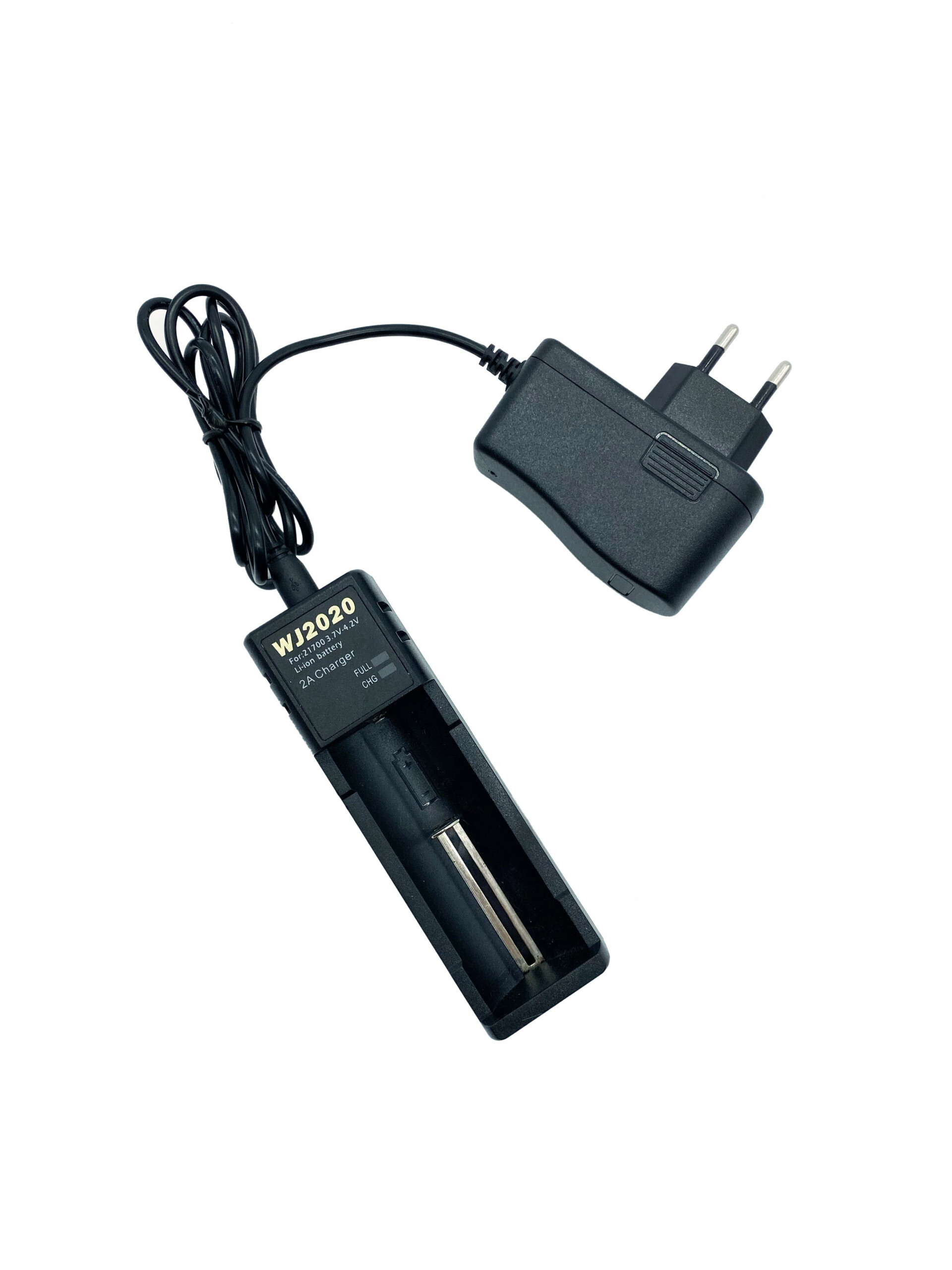

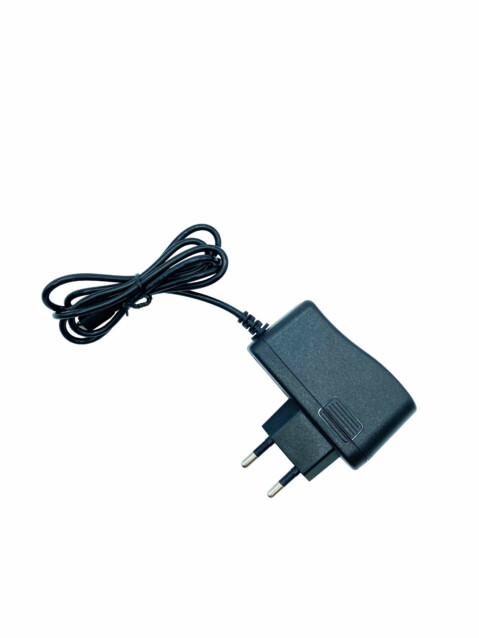

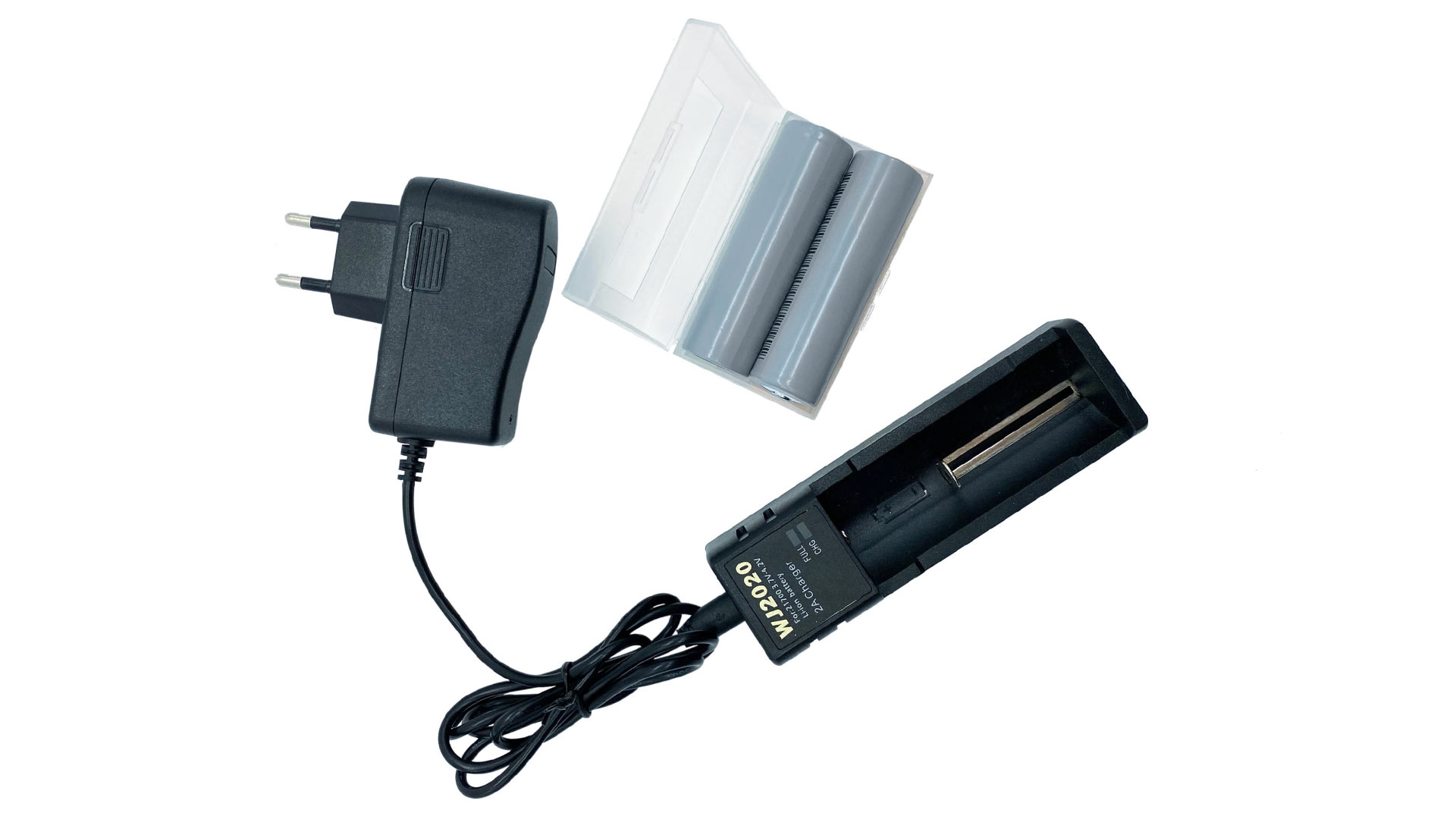

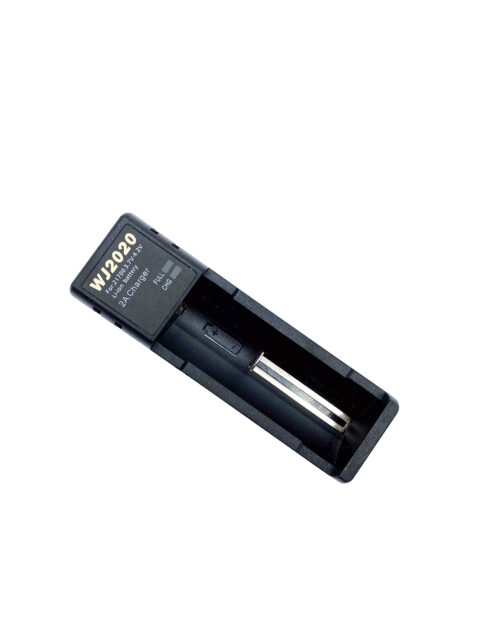

Charger | 100-240VAC, 50/60 Hz (EU or US plug) |
Charging time | 150 min |
Weight (with battery) | 370 g |
Total weight (with packaging) | 0,5 Kg |
Minimum brightness for working operations | 200 LUX |
Vibrations at start up | < 2.5 m/sec 2 |
Temperature range | 0 – 55 C |
Umidity range | 10 – 95% without condensate |
Safety
DOWNLOADS
Exploded View
Manuale D'Uso
Use Manual
Benutzerhandbuch
Manuel D'Emploi
Manual De Uso
Gebruikershandleiding
Instrukcja Obsługi
Oδηγιες Xρησης Kαι Συντηρησης
Návod k Použití a Údržbě
Brugs- Og Vedligeholdelsesmanual
Használati és Karbantartási Útmutató
Instruções de Utilização e Manutenção
