RS1S
Battery Driven Scissors
TEXTILE
LEATHER
TECHNICAL
COMPOSITE
SPORT

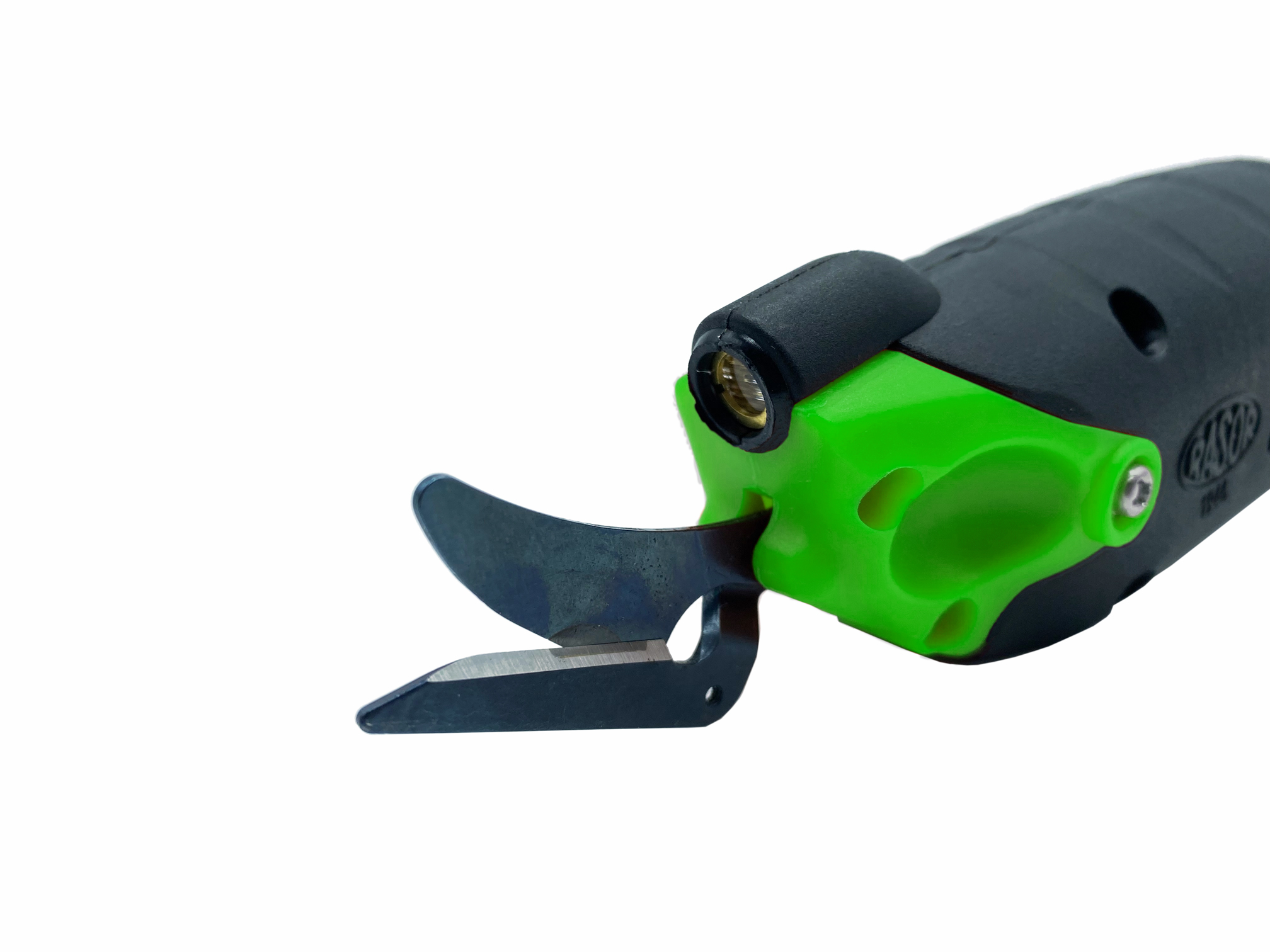

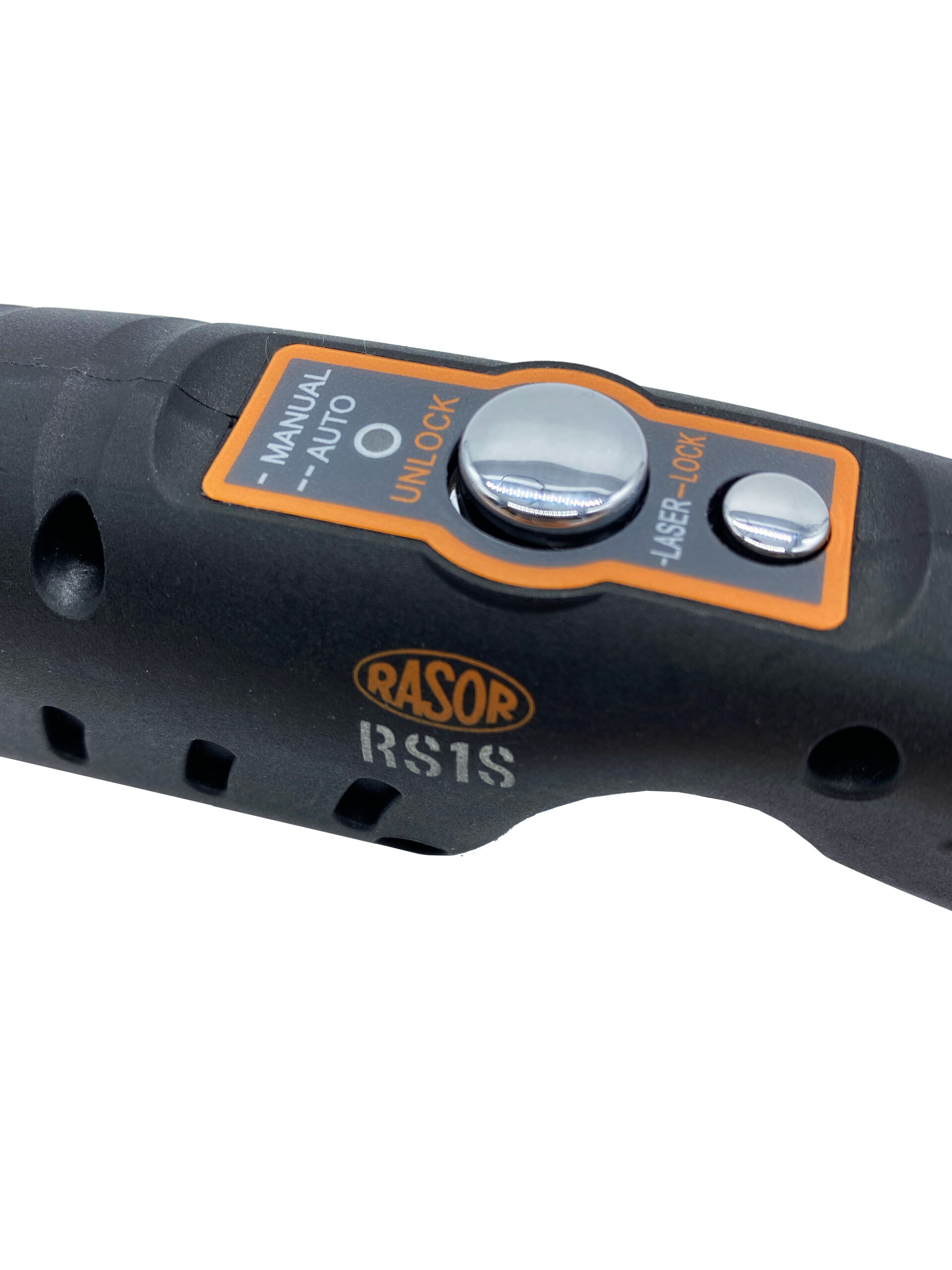

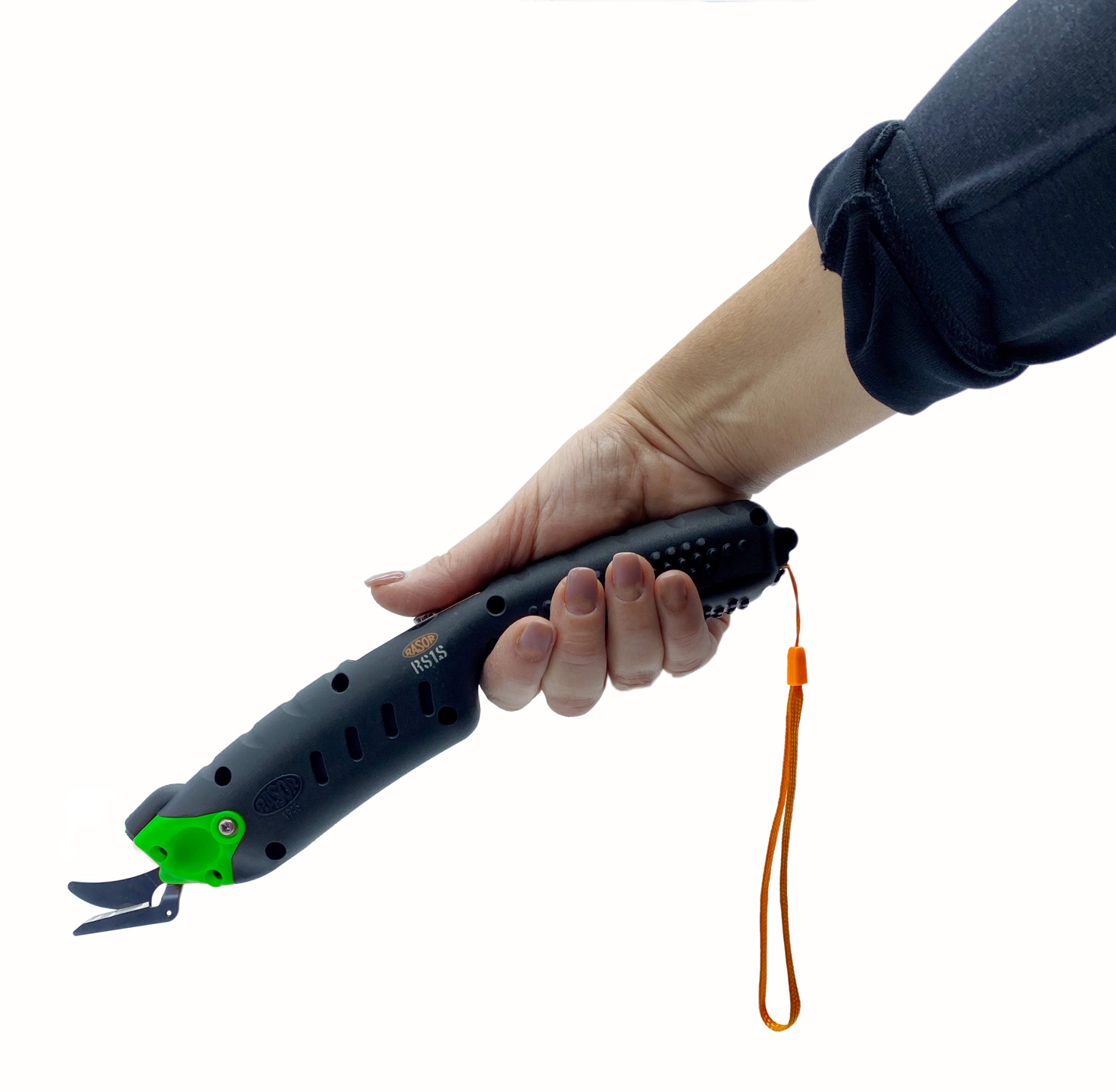

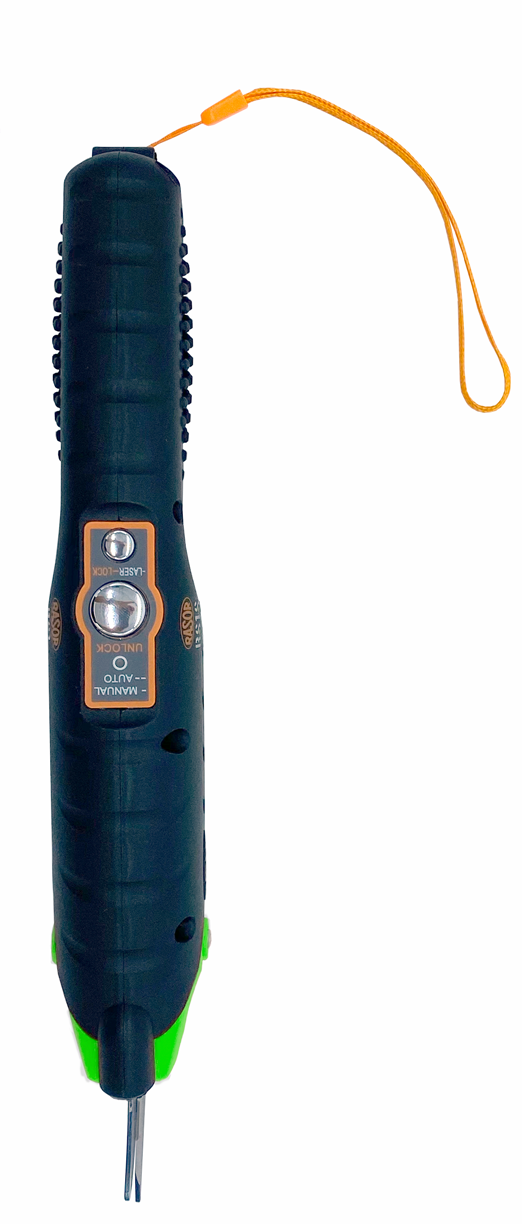

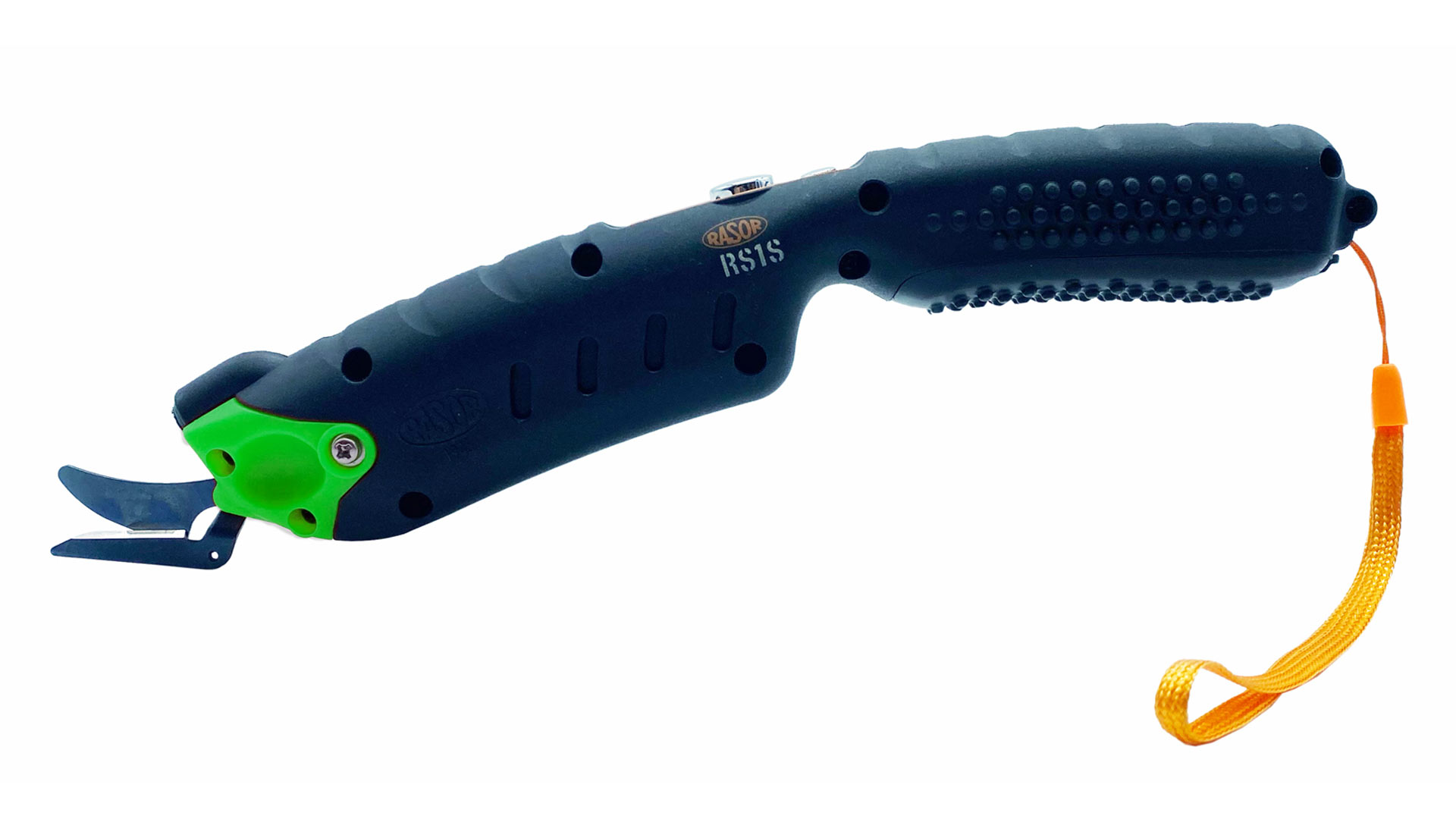

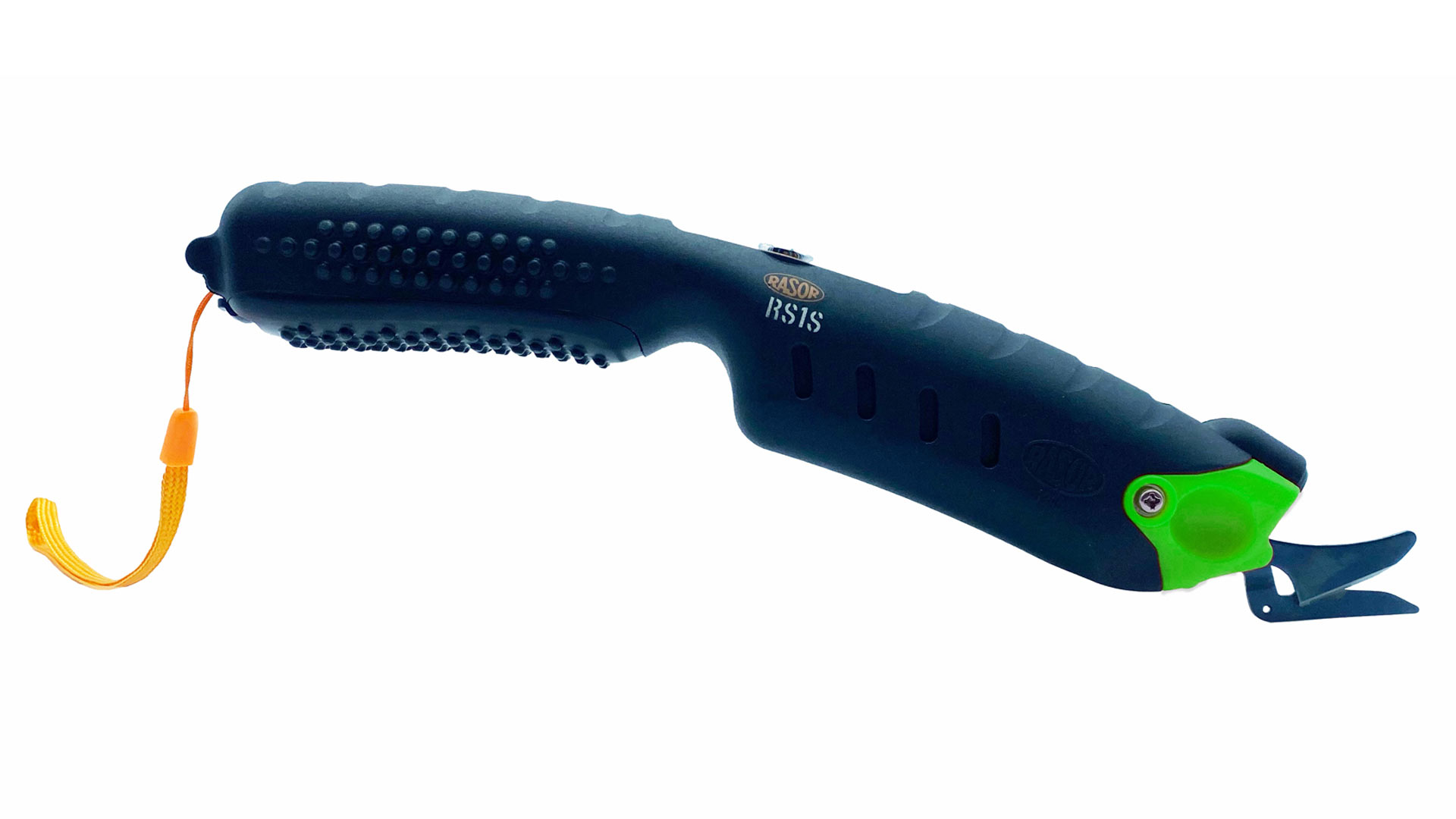

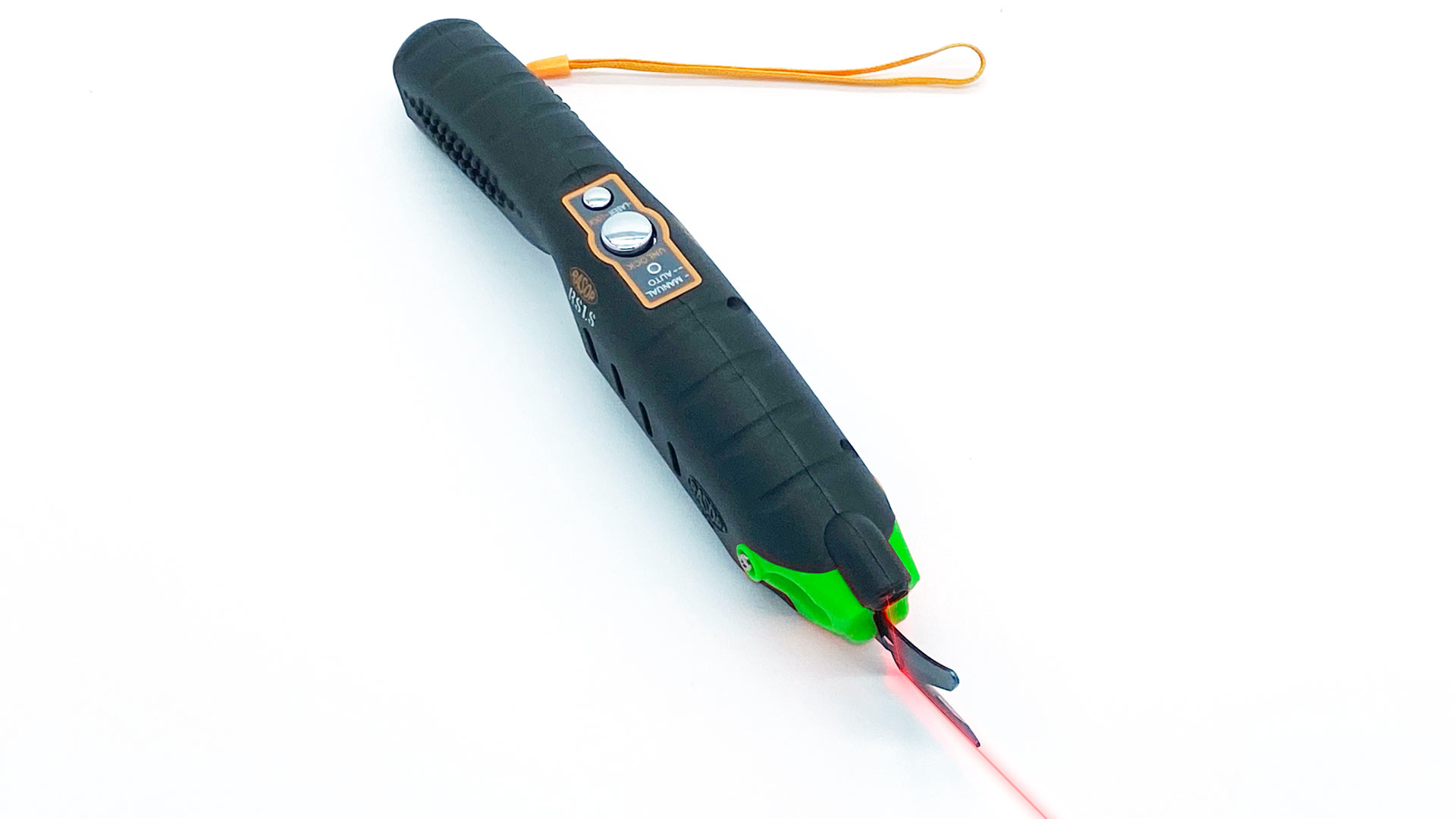

The new RASOR® RS1S is a professional battery driven scissor. It is ergonomic, strong and has excellent cutting performance. The RS1S has blades with Tungsten steel inlays with micro-serration which assure perfect cut without jam and clean edges, specifically developed for Composite materials. The Li-Ion® technology batteries ensure a long-term use and are powerful with 3.7V and 5Ah. The speed of the motor (19.000 rpm) allows to move the blades at 80 times per second. The smart button technology with safety-block and automatic cutting mode makes the RS1S an unique scissor on the market. The integrated laser light-line allow to follow a line for a straight cut. The Rasor® RS1S guarantees long and effortless use thanks to its light weight of only 370 grams, including the battery. All kinds of composites and technical textiles can be cut with the RS1S. Combination and hybrid materials will be cut with ease. Thanks to its ergonomic and convenient design, it cuts both straight and contour with an excellent view of the material.
VIDEO
SPECIFICATIONS

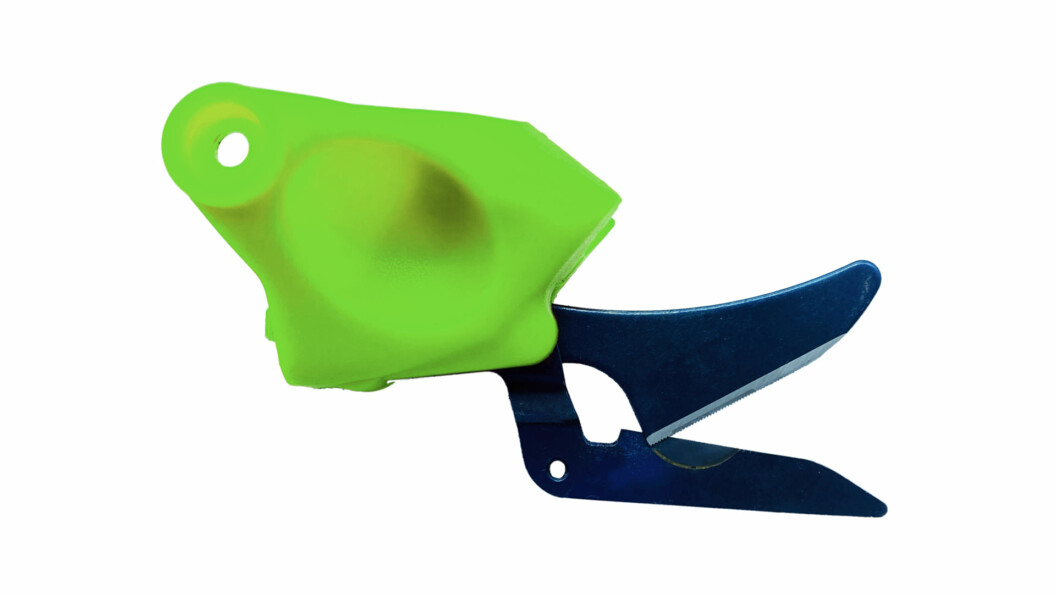

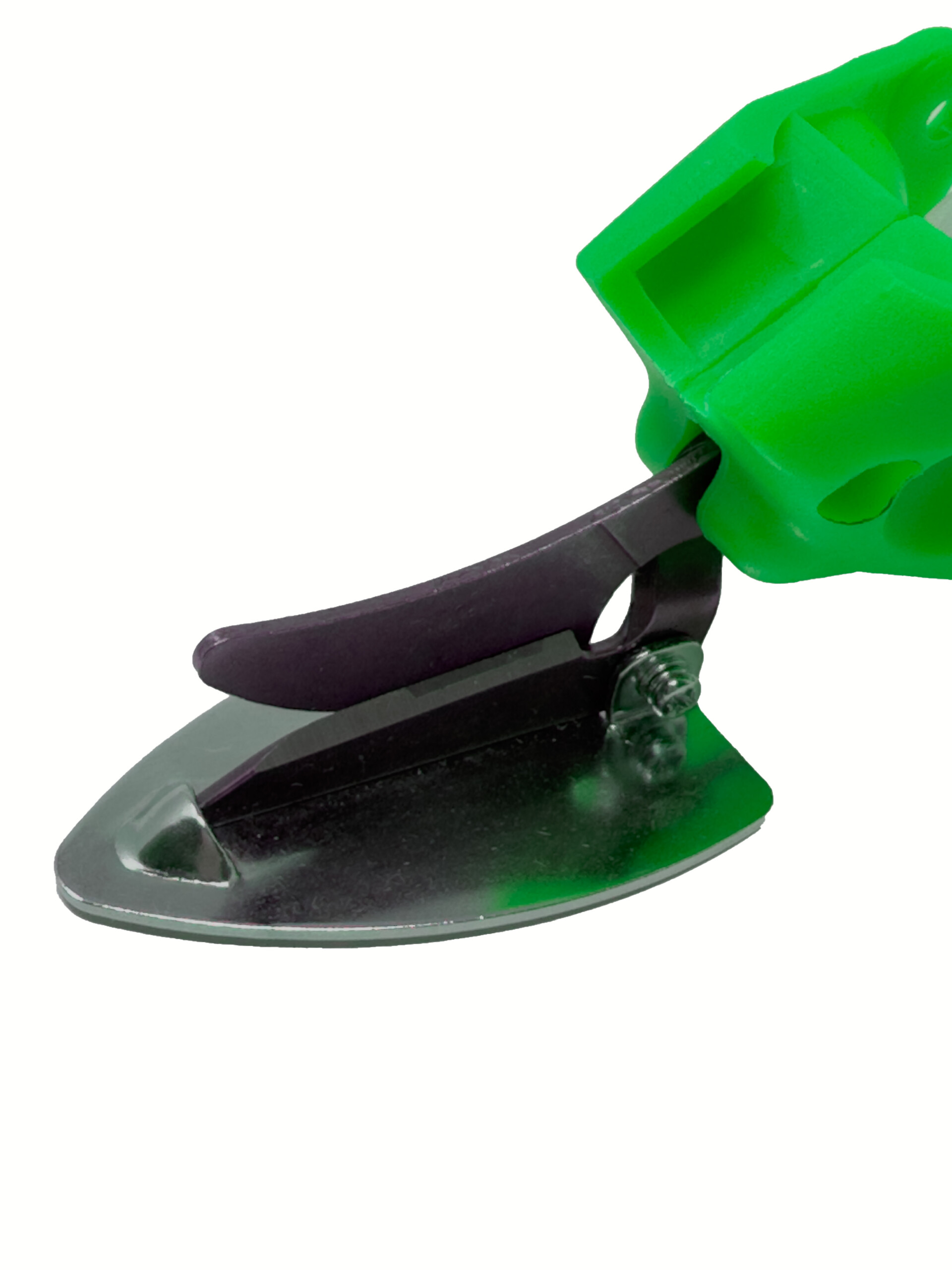

Blade type | alternating, steel with Tungsten inlay (Widia®) and micro-serration |
Motor speed | 19.000 rpm |
Blades speed | 80 rpm |
Cutting ability | 18 mm |
Power | 32 W |

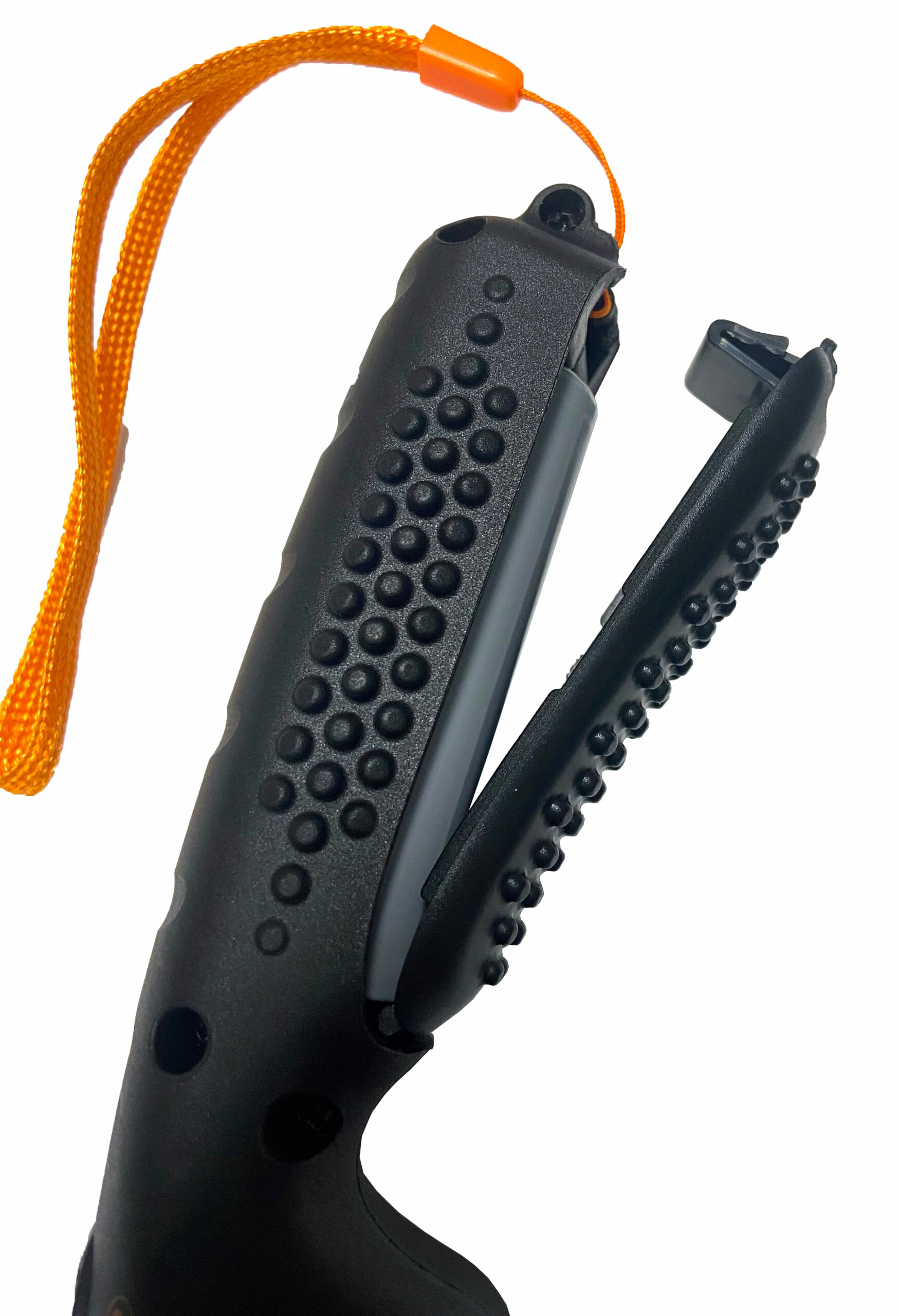

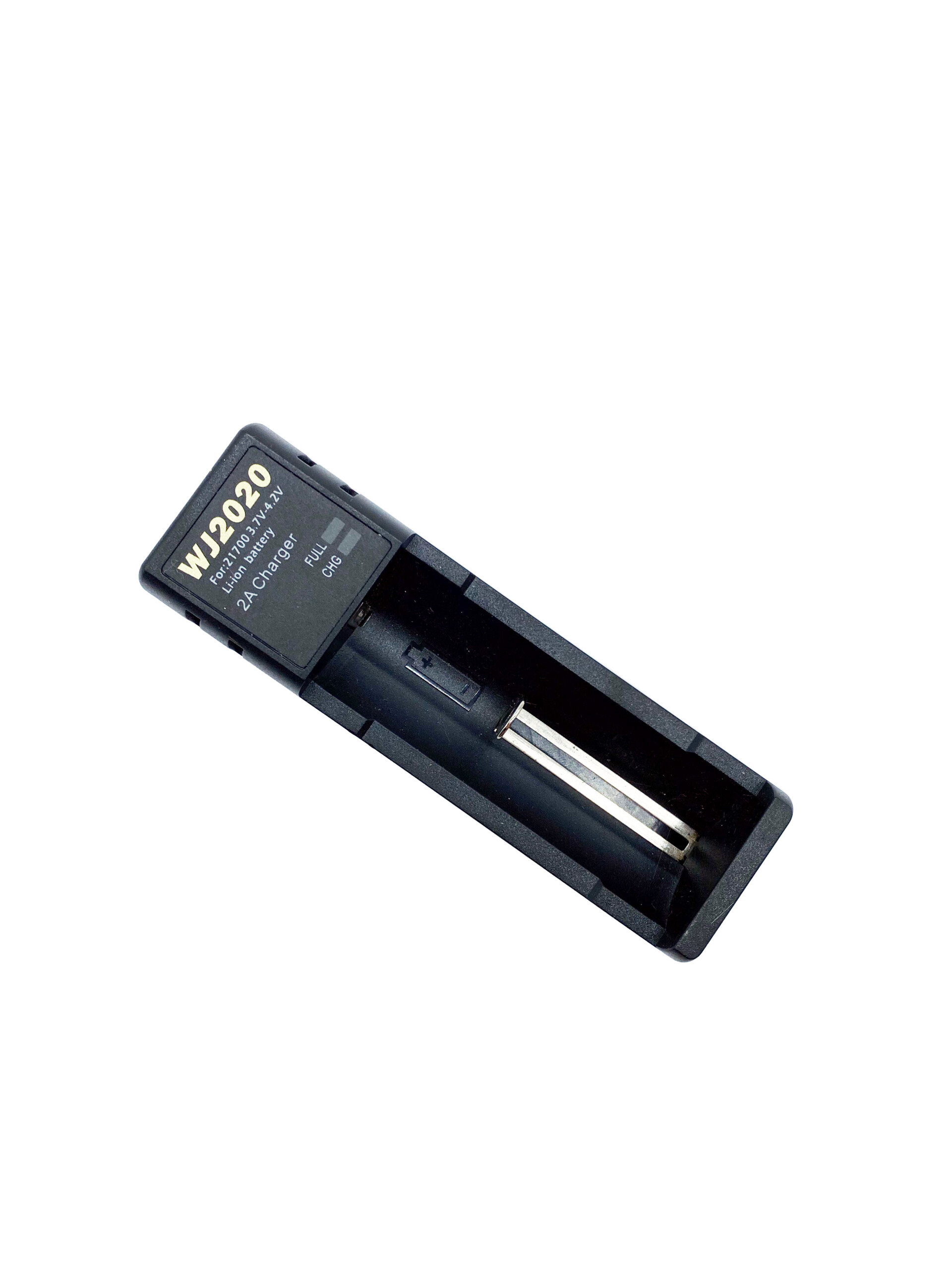

Battery | 2.8-4.2 V, Li-Ion®, 5 Ah rechargeable with LED indicator |

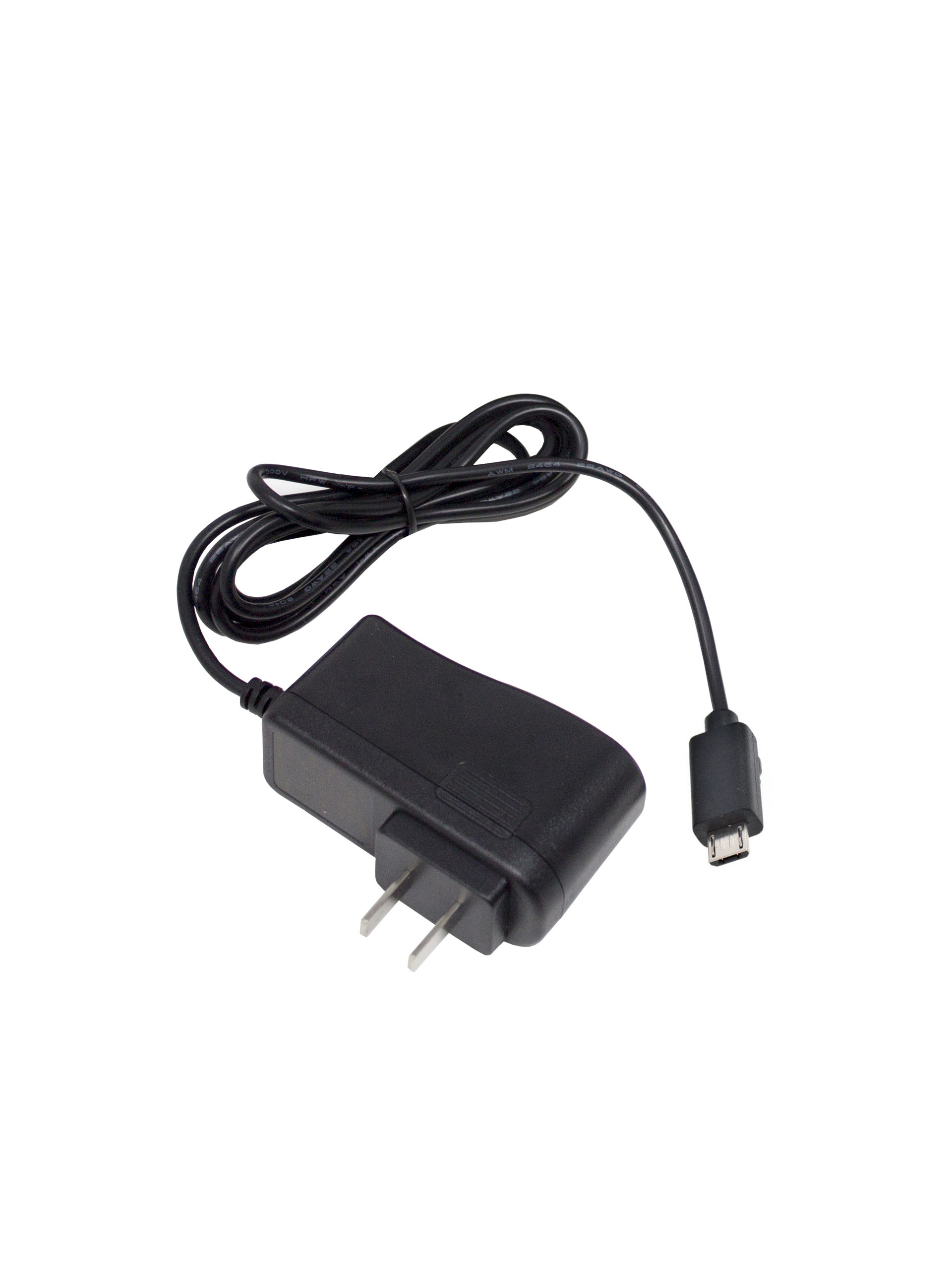

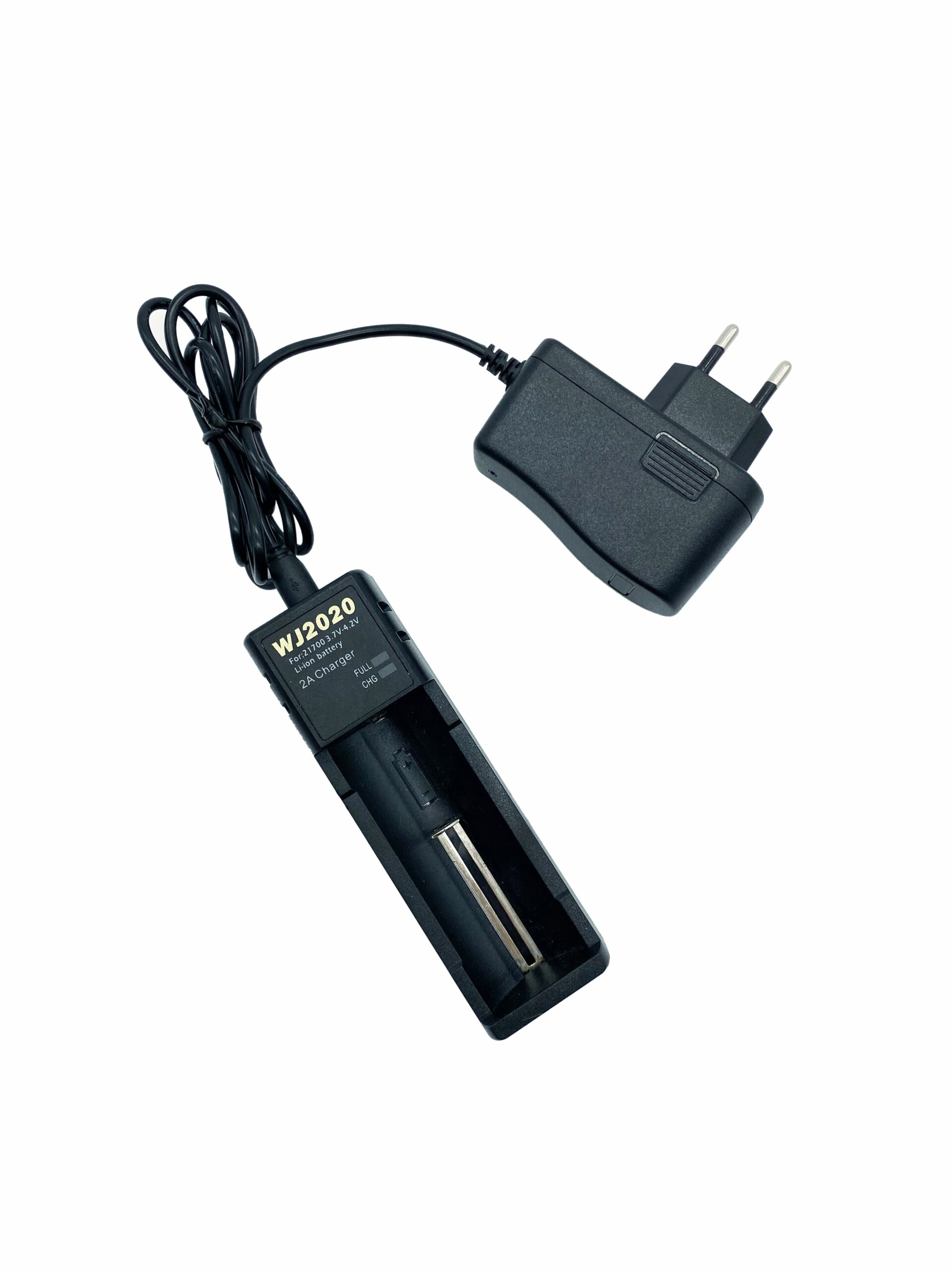

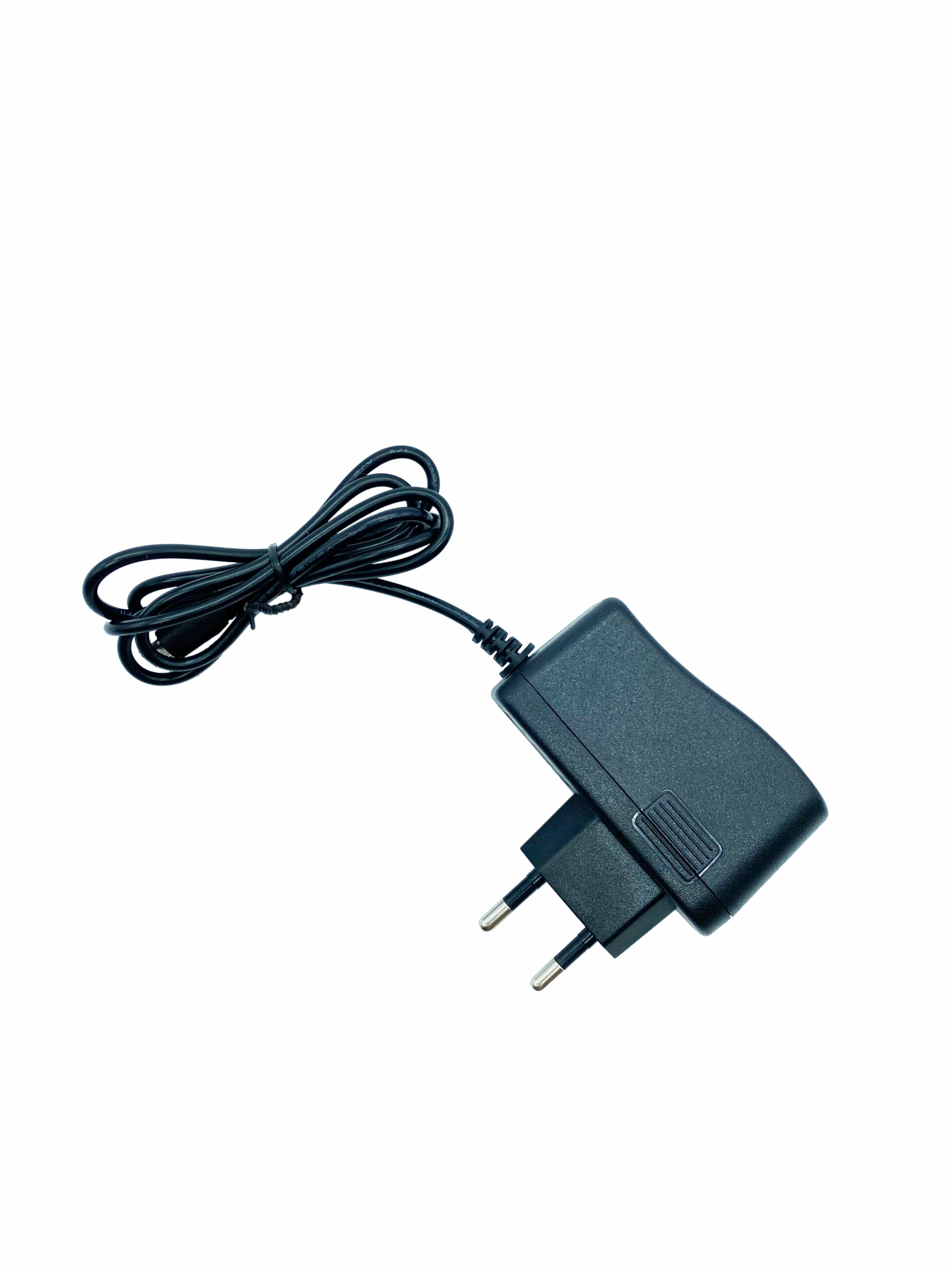

Charger | 100-240VAC, 50/60 Hz (EU or US plug) |
Charging time | 150 min |
Weight (with battery) | 370 g |
Total weight (with packaging) | 0,5 Kg |
Minimum brightness for working operations | 200 LUX |
Vibrations at start up | < 2.5 m/sec 2 |
Temperature range | 0 – 55 C |
Umidity range | 10 – 95% without condensate |
