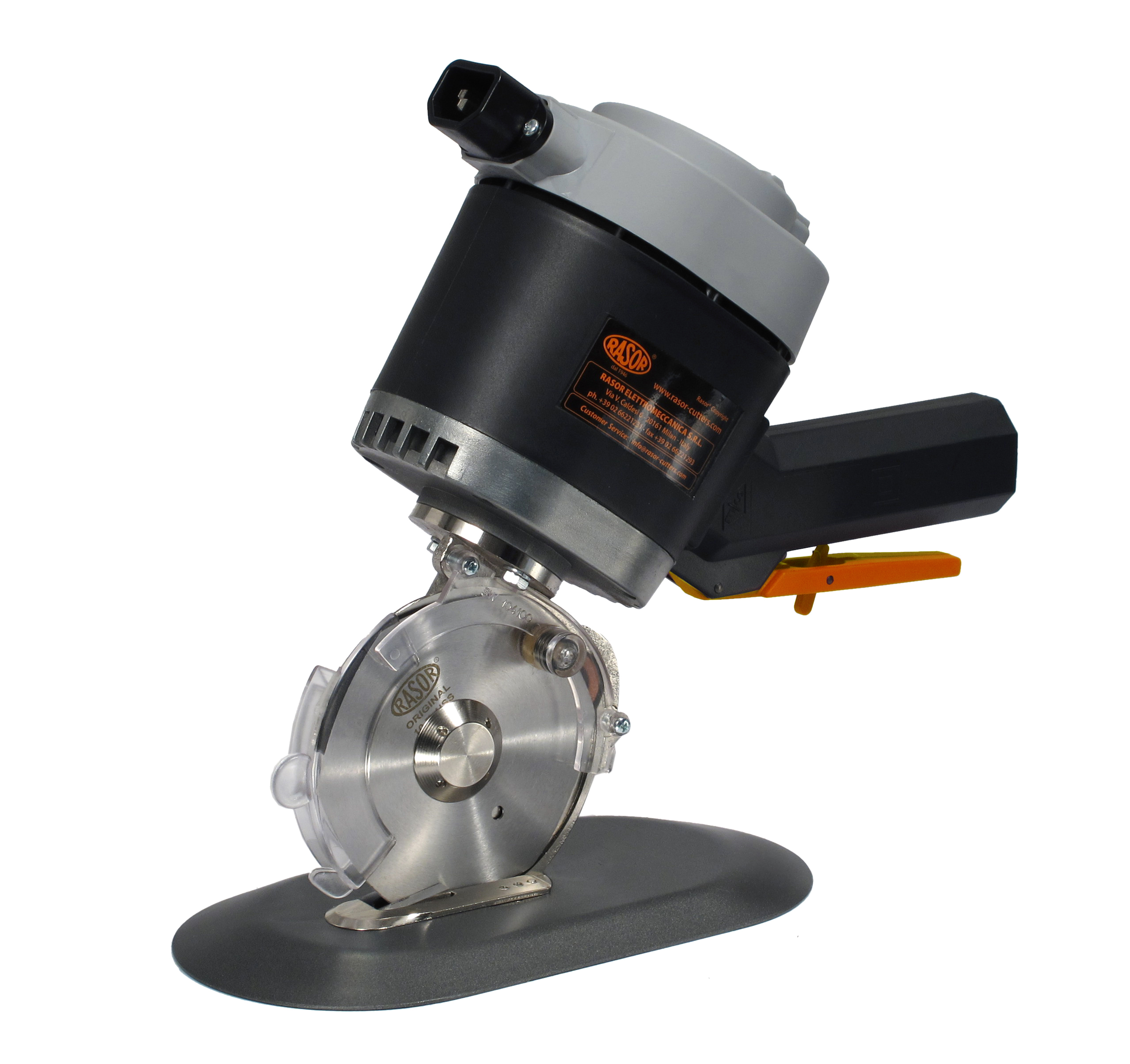

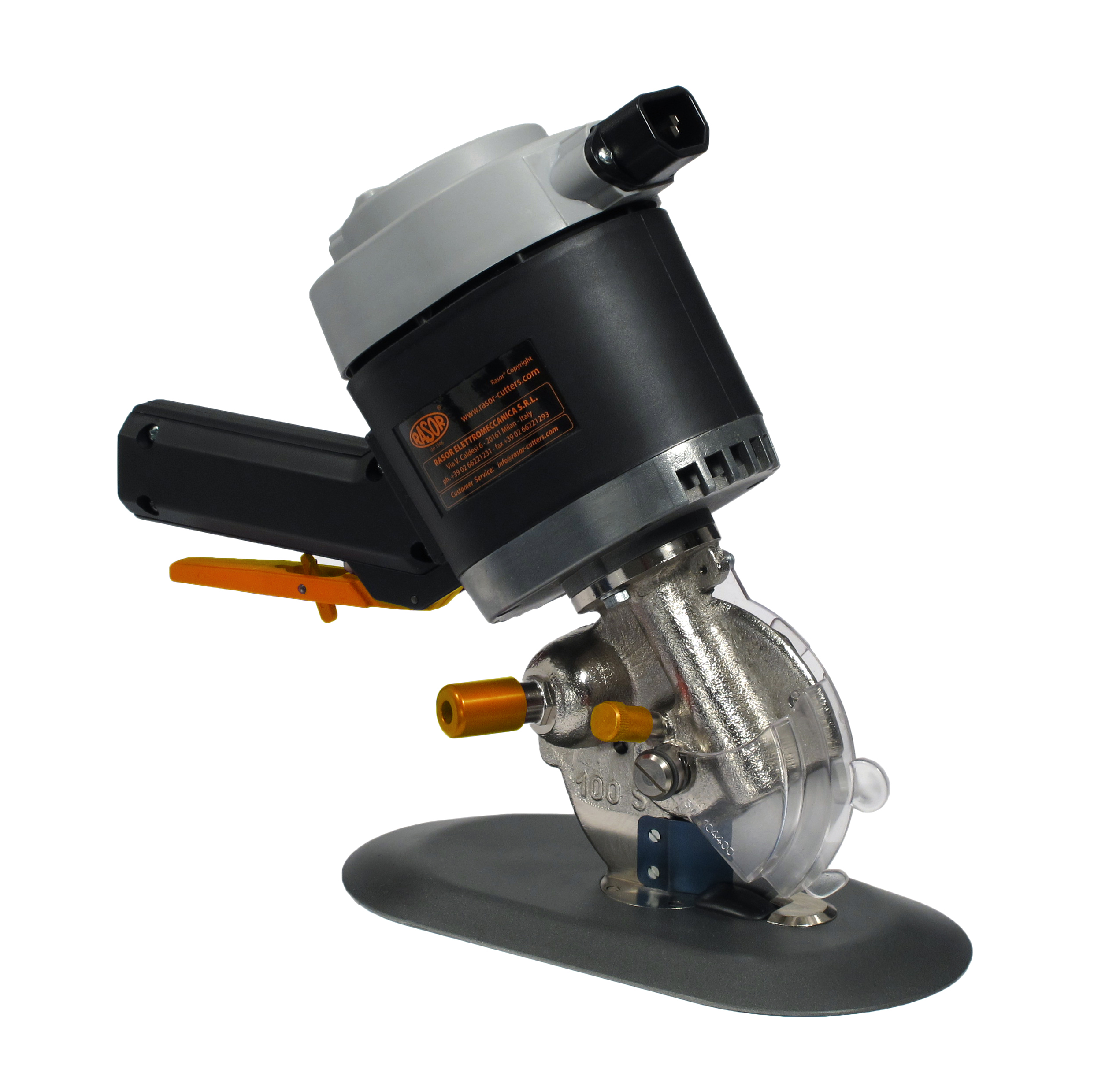

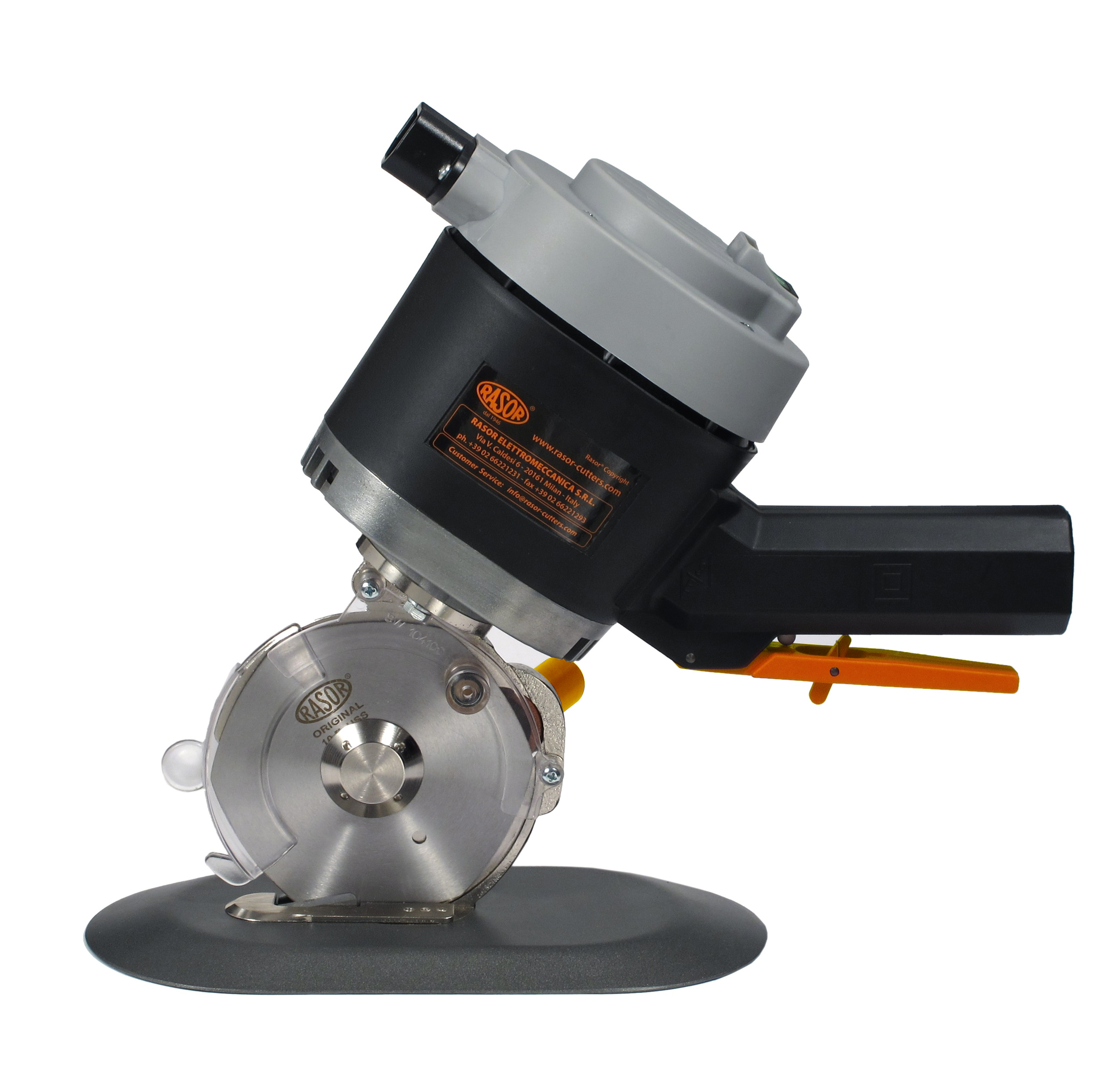

SW100

Electric Bench Cutters

TEXTILE
LEATHER
TECHNICAL
COMPOSITE
SPORT

For over 40 years within the market, SW100 is the most efficient and popular bench cutting machine in textile and technical fabrics fields. It reached the highest level of technology and safety and can grant power and easy handling due to its weigh of only 3 kilos. The combination between blade and counterblade make the cut to be sharp and precise without any rag grinding. The 90Watt balanced and silenced motor combined with high resistance bronze/steel gear couplings create a longlasting stability. The 6-edge 100mm diameter knife allows to cut any kind of fabric up to 35mm thickness. The aluminium cutter base with rolls is Teflon® coated to be friction proof and grant an easy feed of the fabric with no efforts. The push button sharpening stone allow the sharpening of the knife edge to be done in less than 10 seconds without removing the knife. The low maintenance and low operation cost make surely SW100 to be the best cutting machine suitable for any application in textile and technical fabrics fields.

GALLERY

VIDEO

SPECIFICATIONS

Blade diameter 100 mm (4″), with hard metal counterblade
Blade descr.10EHSS, 6-edges, HSS steel
Blade speed 850 r.p.m.
Cutting ability 35 mm (1.4″)
Power singlephase – 90 W
Max absorption 2 A, with protection fuse
Net weight (with power supply cord)2950 g
Total weight (with packaging)4650 g
Electric cable length1.5 mt (with no plug)
Minimum brightness for working operations200 LUX
Vibrations at start up< 2.5 m/sec 2
Temperature range0 – 55 C
Umidity range10 – 95% without condensate

Safety

  • Double safety start-up system device
  • Main power switch with Led indicator
  • Heigh-adjustable trasparent fore blade protection
  • Fixed trasparent back blade protection
  • 2 A cut-off fuse
  • Double electric insulation
